Description

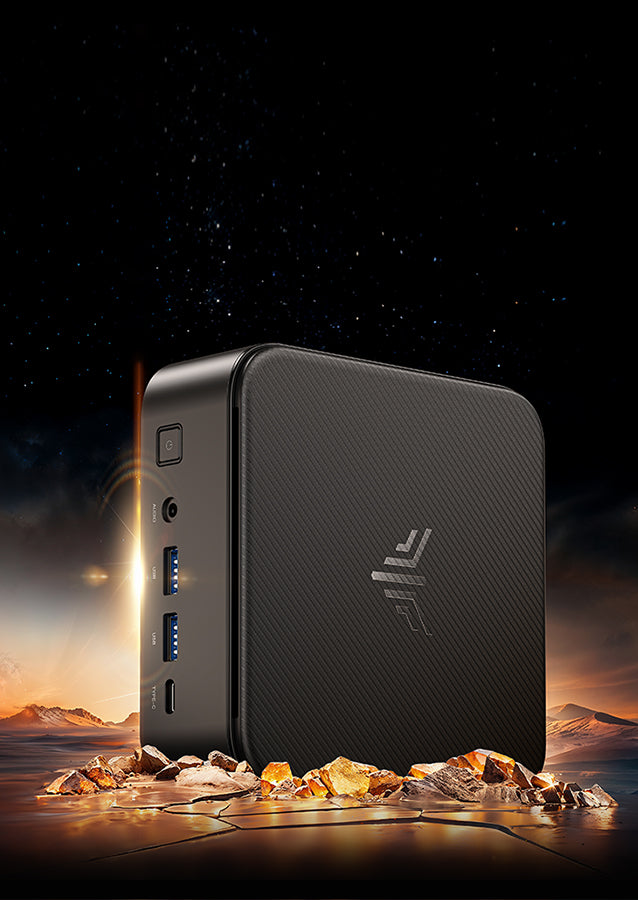

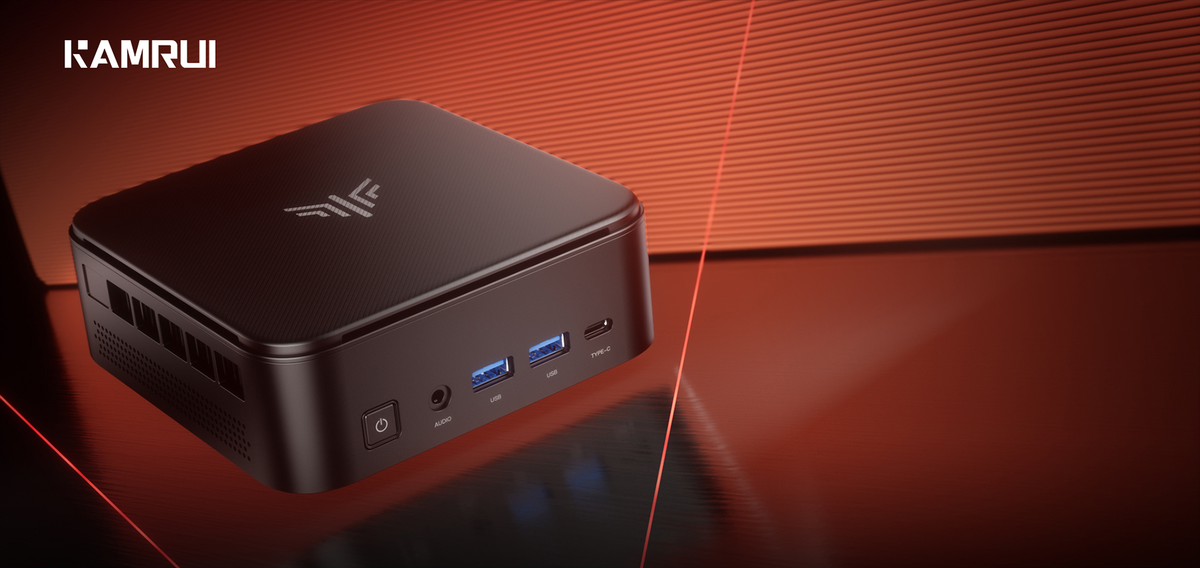

xThe KAMRUI E3B Mini PC is powered by the AMD Ryzen 7 5700U processor, featuring 8 cores and 16 threads with a max boost clock of up to 4.3GHz. It comes equipped with integrated Radeon RX Vega graphics, offering excellent performance for graphics-intensive tasks. This compact computer is ideal for video and photo editing, office productivity, 4K video playback, casual gaming, and home theater use.
Specification
x| Processor | AMD Ryzen™ 7 5700U Processor, 8 Cores/16 Threads, 8 MB Smart Cache, base frequency 1.8GHz, maximum acceleration clock frequency (Turbo) 4.3GHz |
| Graphics | AMD Radeon RX Vega 8 (Graphics Frequency 1900MHz, Graphics cores : 8) |

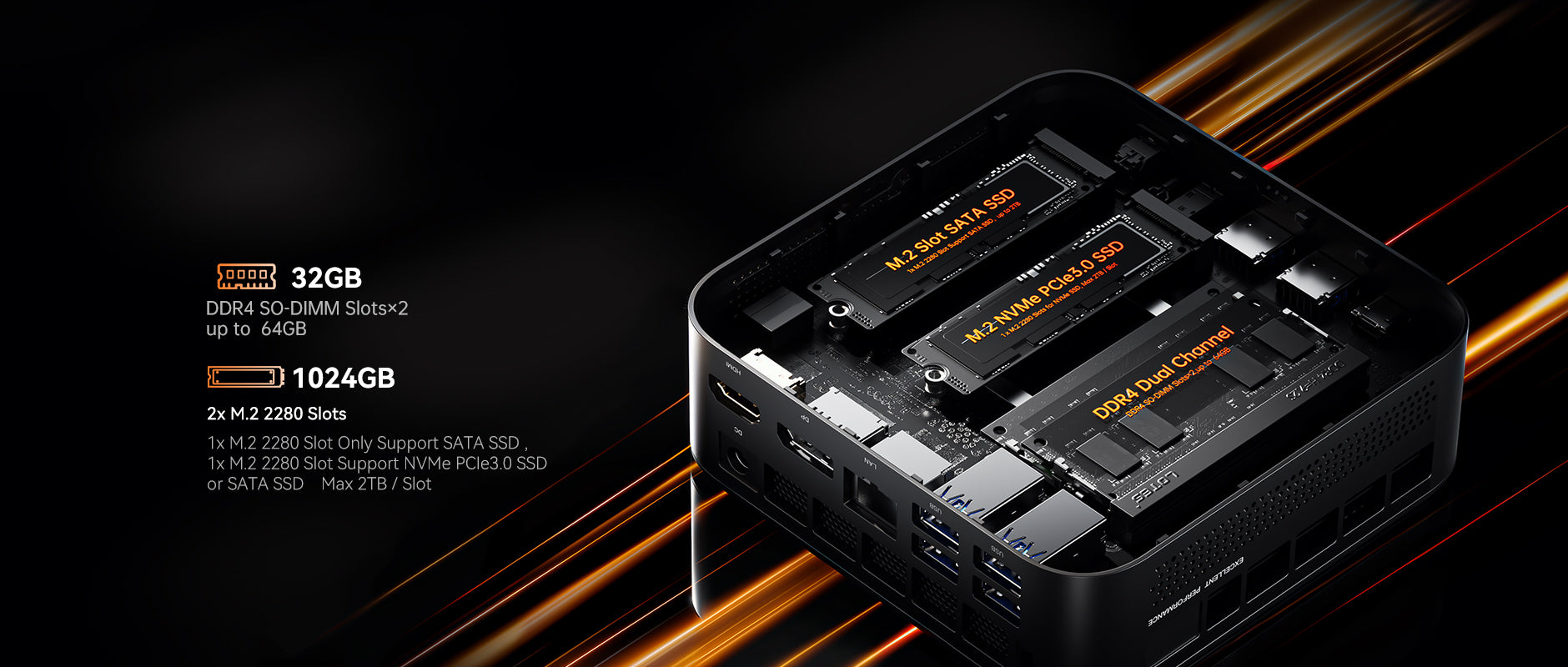

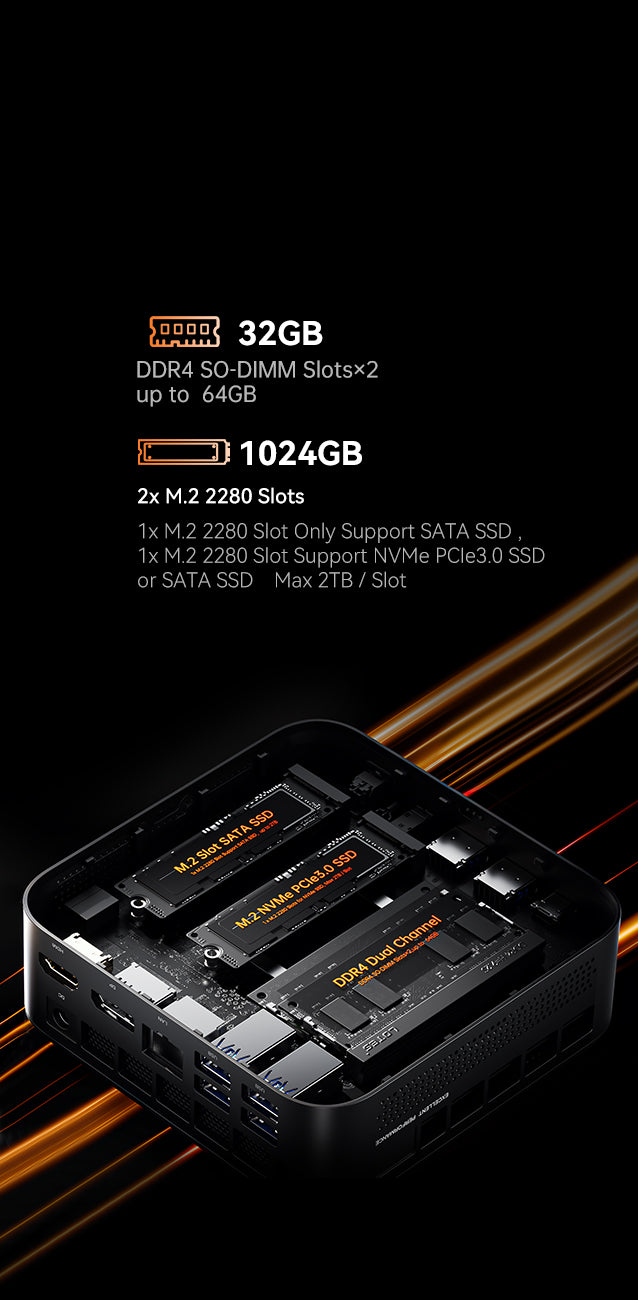

| Memory | 32GB DDR4 3200MHz (SO-DIMM Slot*2, up to 64GB, support maximum frequency is 3200MHz) |
| Storage | 1TB M.2 2280 SATA SSD (M.2 2280 Slot*2, 1* M.2 2280 Slot supports NVMe PCIe3.0 SSD or SATA SSD, 1*M.2 2280 Slot only supports SATA SSD, single hard disk interface supports up to 2TB) |
| Wireless Connectivity | WiFi 6, BT5.2 (M.2 2230） |
| Video Output | HDMI 2.0*1 (4K@60Hz） DP1.4b*1 (4K@60Hz) USB3.2 Gen2 Type-C*1 (4K@60Hz) |
| Audio Output |
HDMI 2.0 * 1 USB3.2 Gen2 Type-C*1 DP1.4b* 1 3.5mm Phone Jack * 1 |

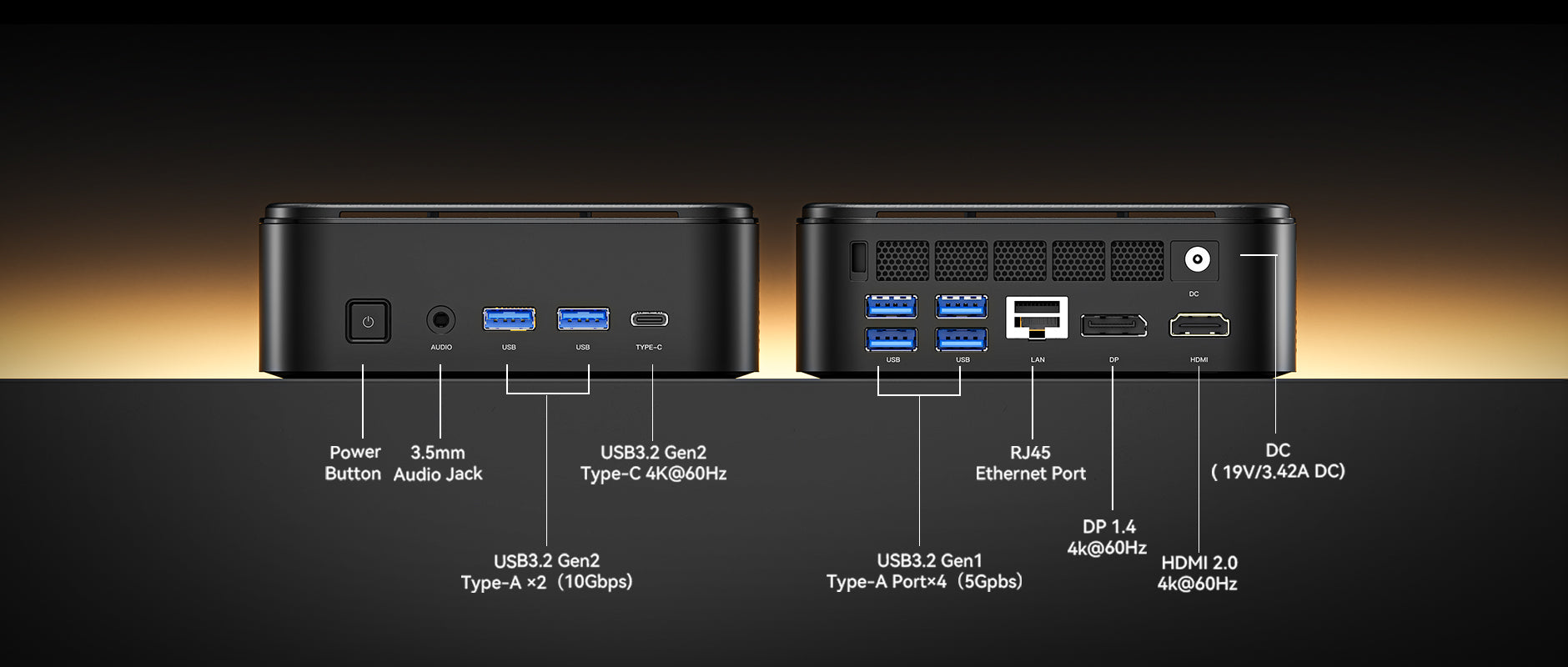

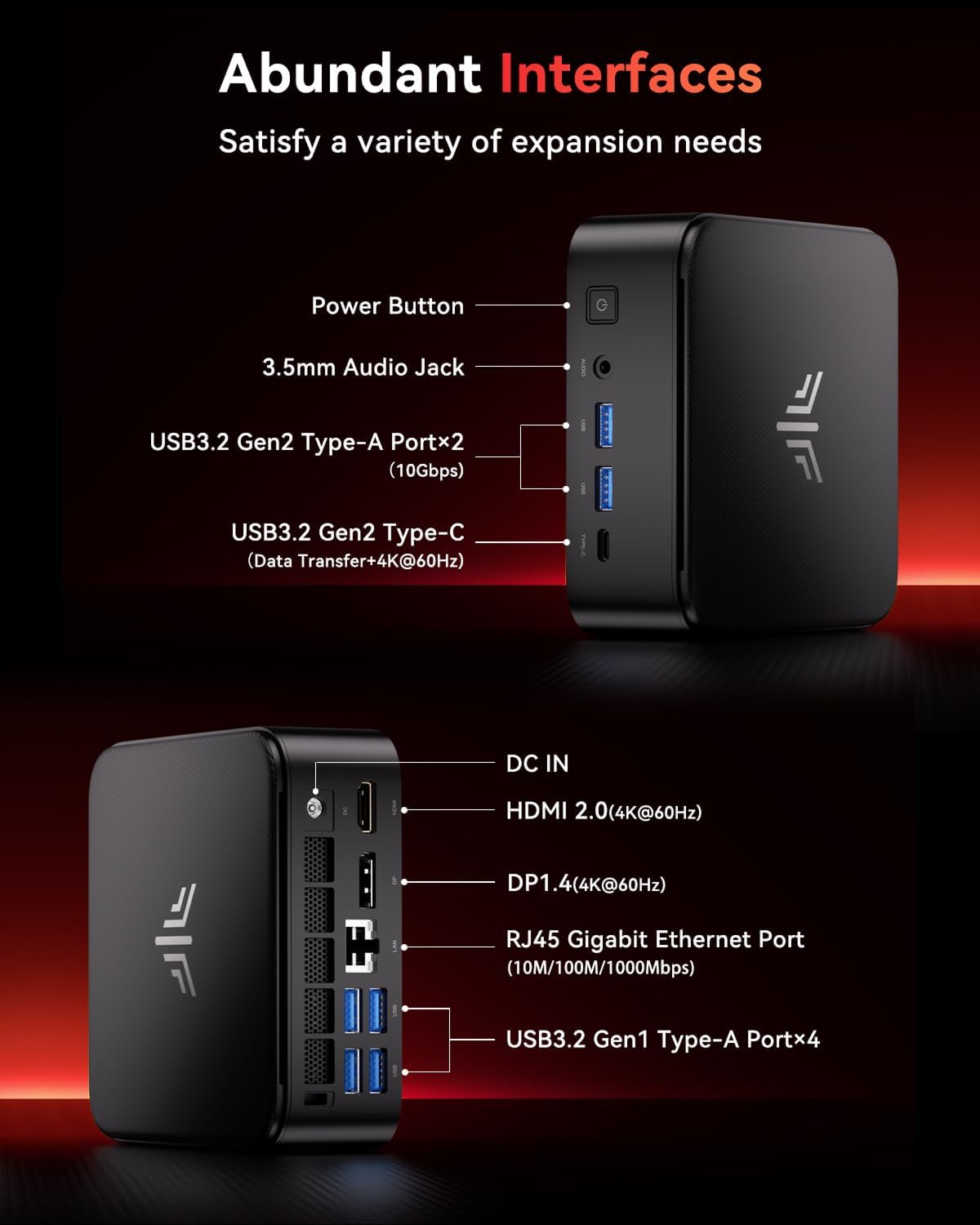

| Ports & Buttons | 10M/100M/1000Mbps adaptive RJ45 Gigabit Ethernet Port *1 USB3.2 Gen2 Type-A Port *2 (front port) USB3.2 Gen1 Type-A Port*4 (behind port) USB3.2 Gen2 Type-C *1 (Support DP1.4, 4K@60Hz, maximum 10Gbps data transfer, PD output) DC IN *1 HDMI 2.0 *1 DP1.4b *1 3.5mm Audio Jack *1 Power Button *1 |
| Power | DC 19V/3.42A，DC Header 5.5*2.1mm |
| System | Windows 11 Pro |

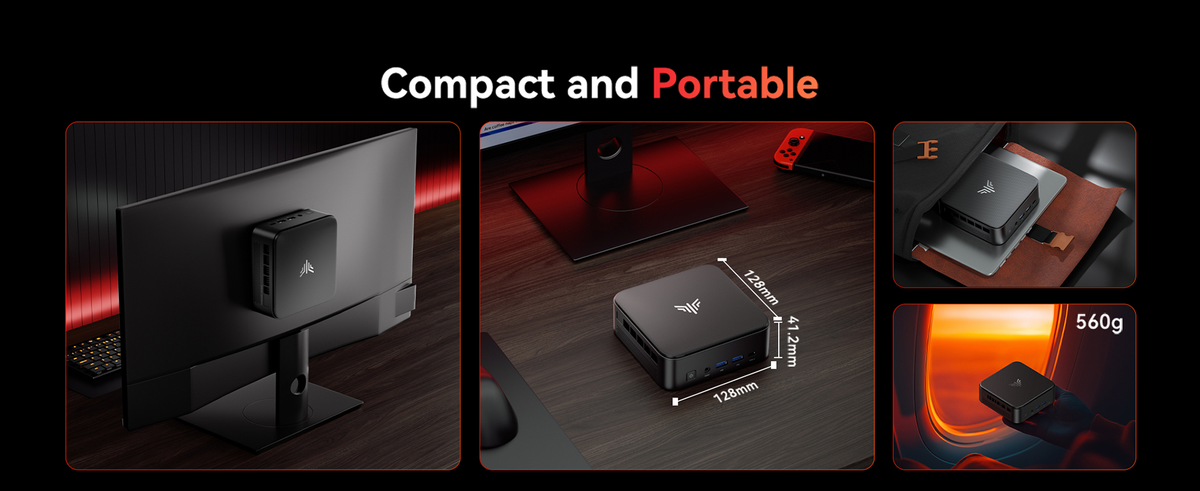

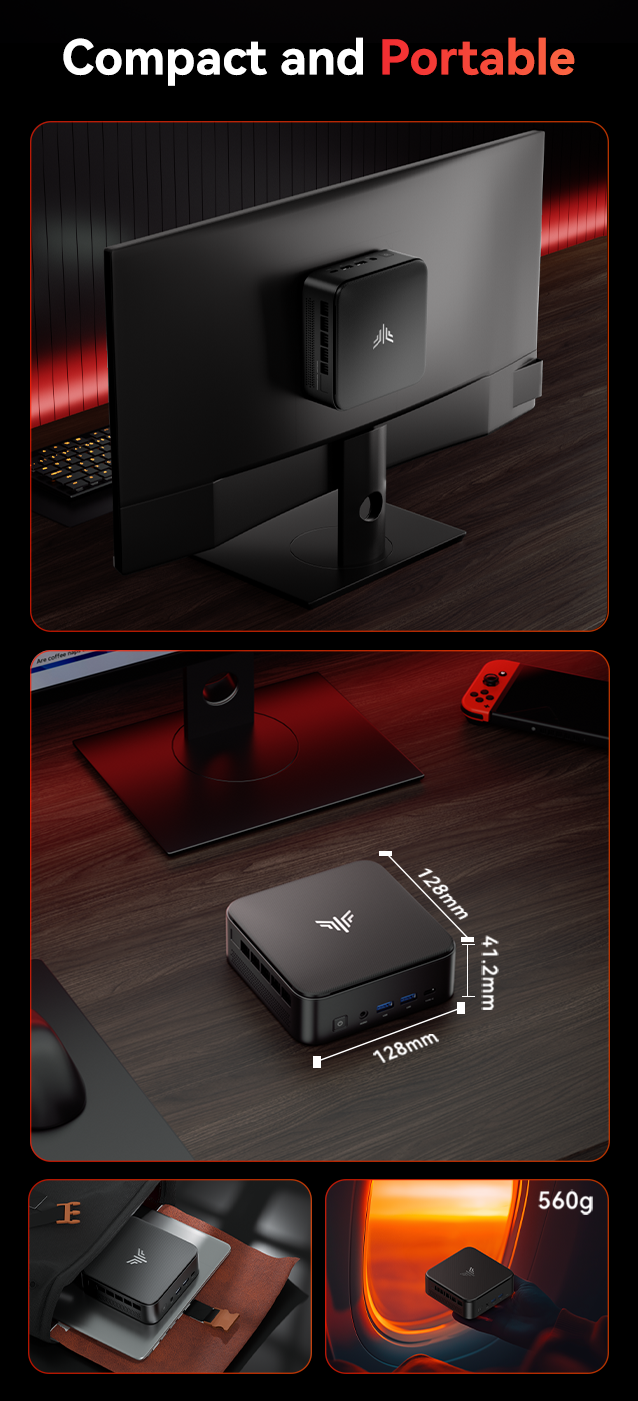

| Dimensions | 128*128*41.3mm |
FAQ
xDoes E3B come with a pre-installed system?
Except for the barebone, all other configurations are pre-installed with the Win11 Pro system.
How to replace the memory and SSD of E3B？
How to install the wall mount bracket for E3B？
How to configure power-on auto-start for the E3B？
How to Set Up PXE Boot on E3B？
How to set E3B timer power on (RTC)？

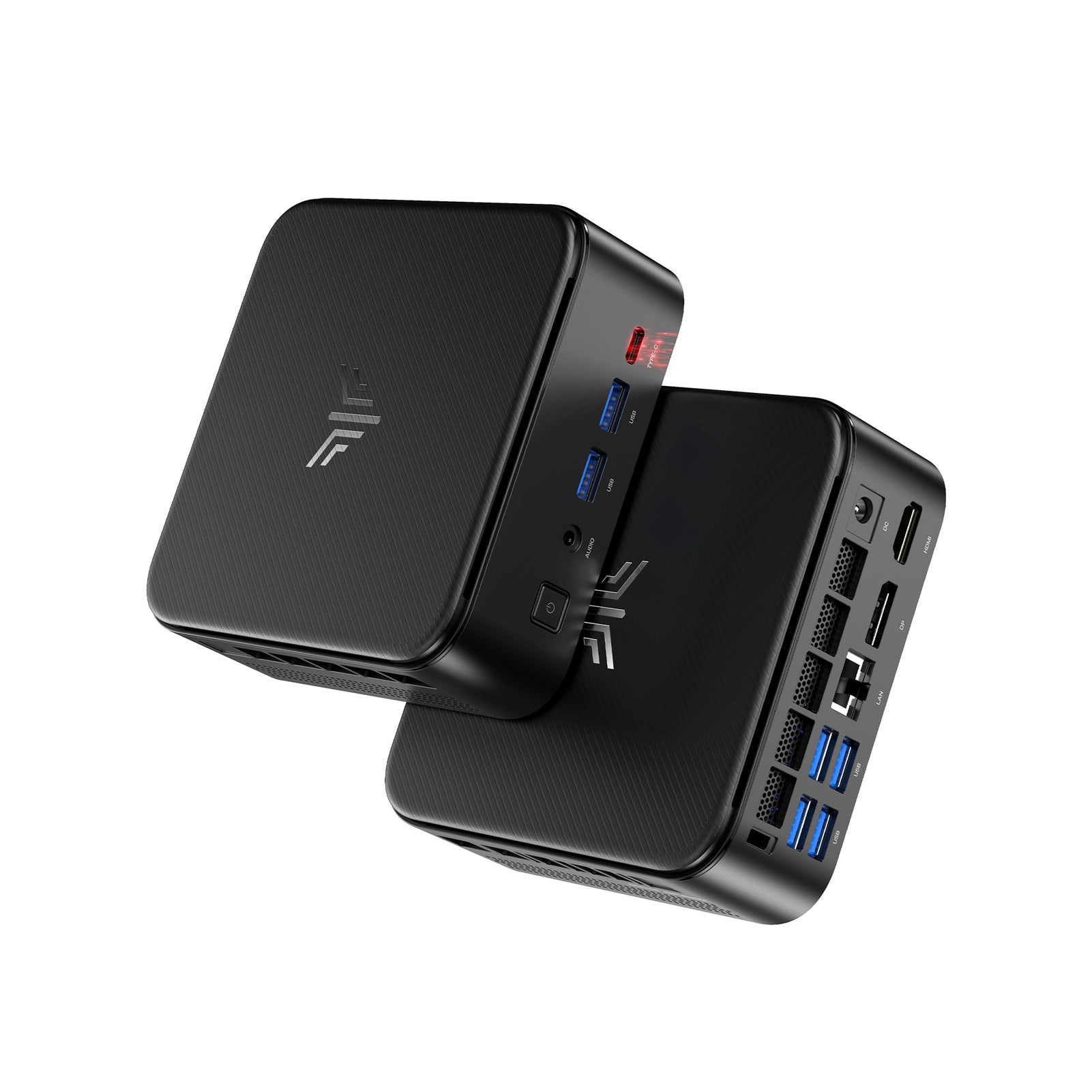

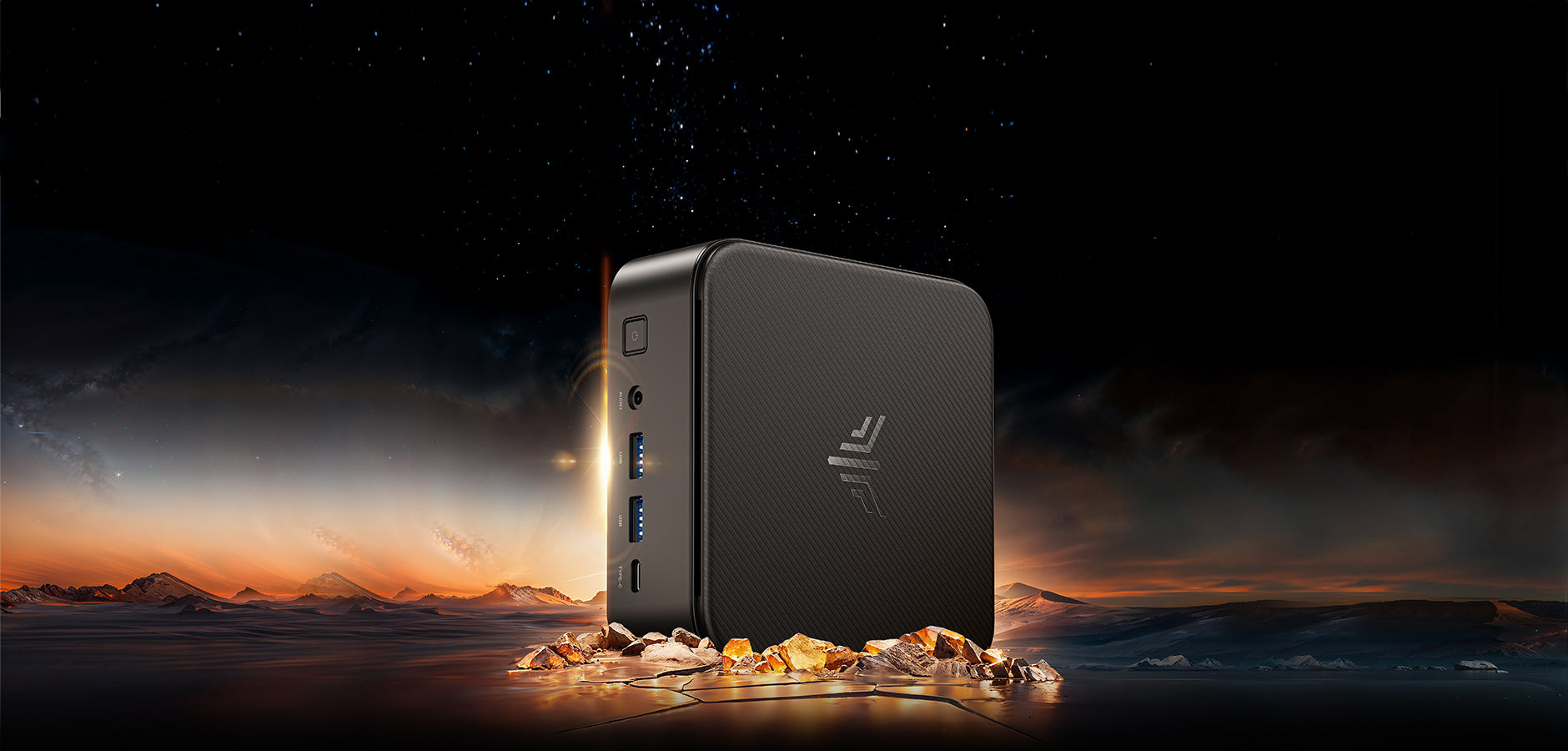

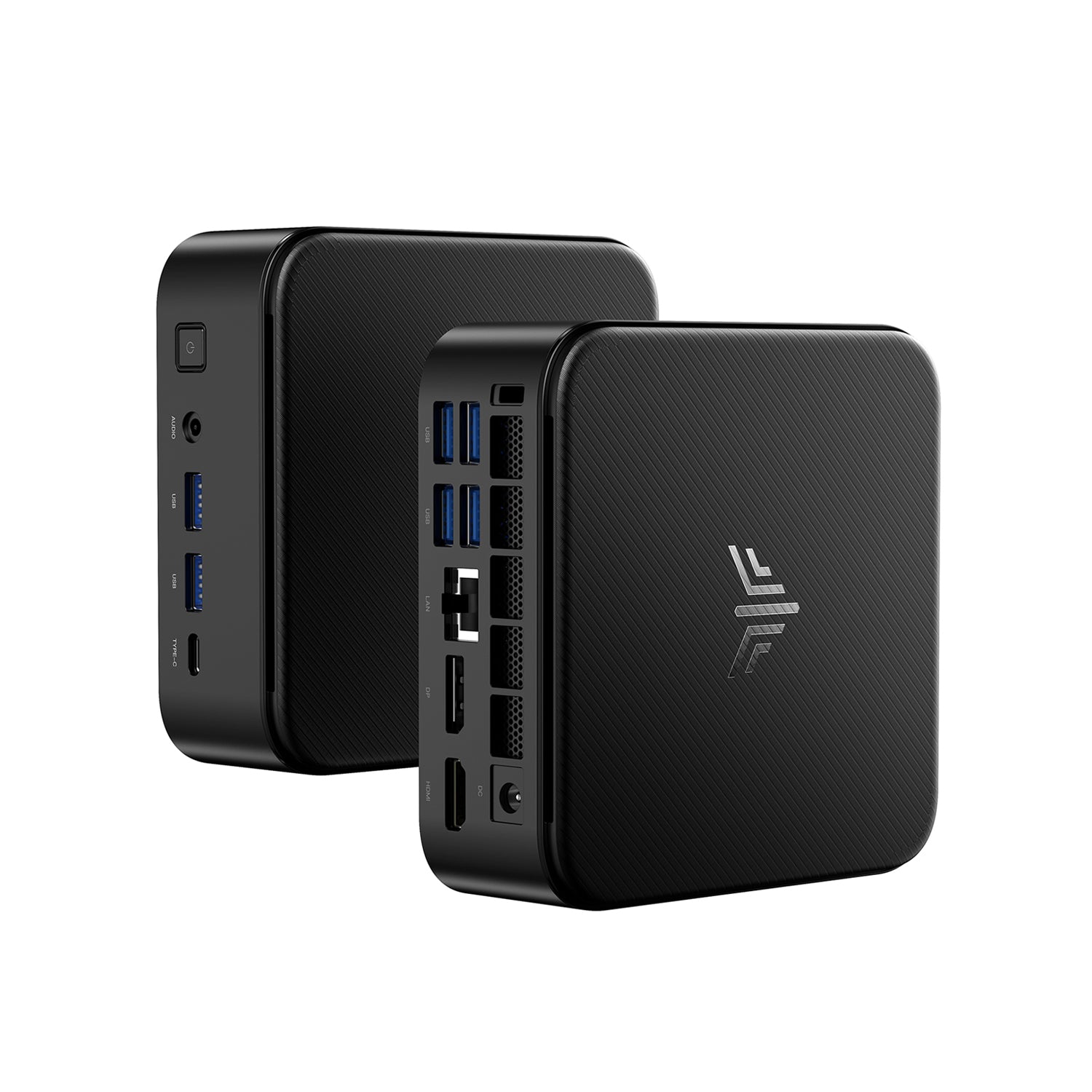

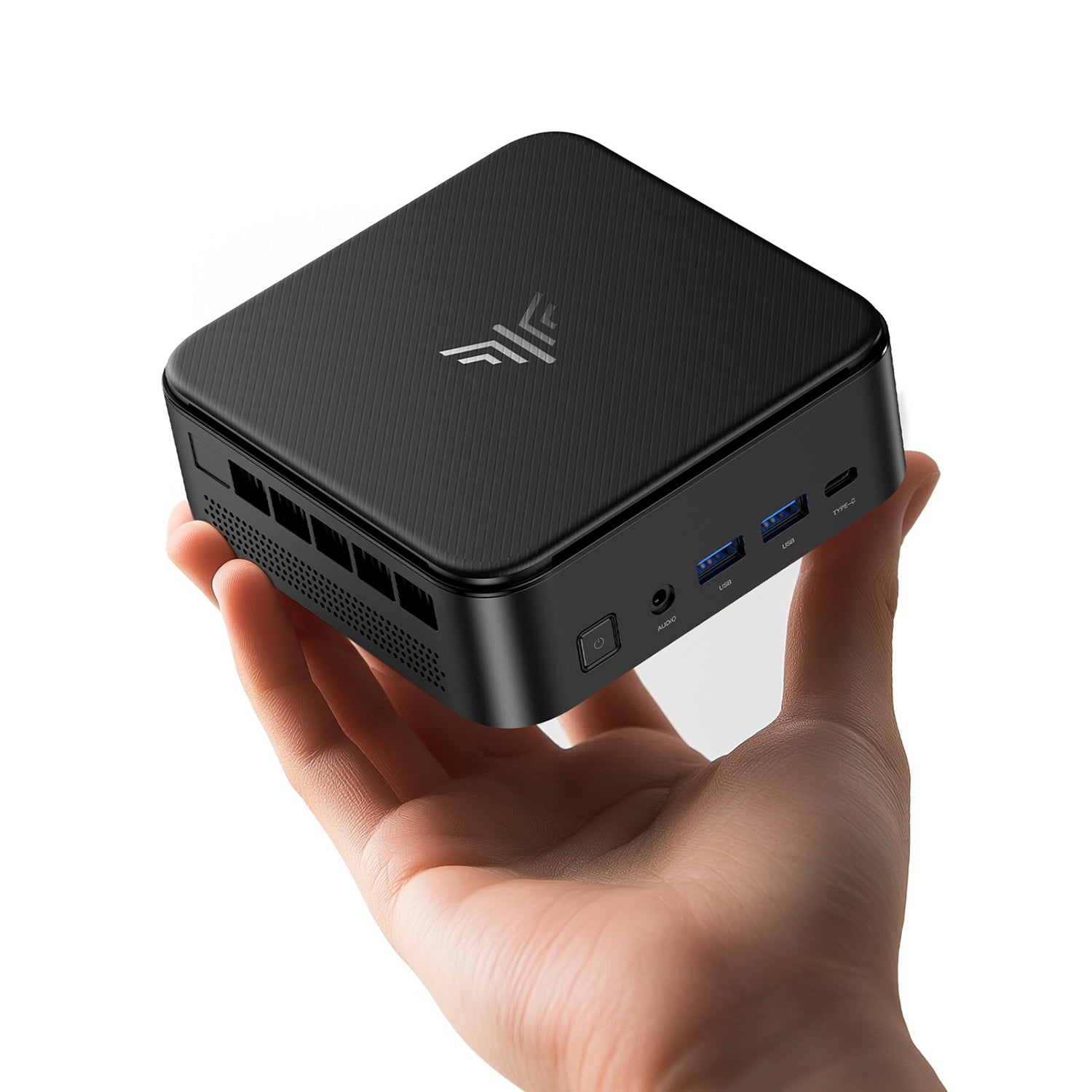

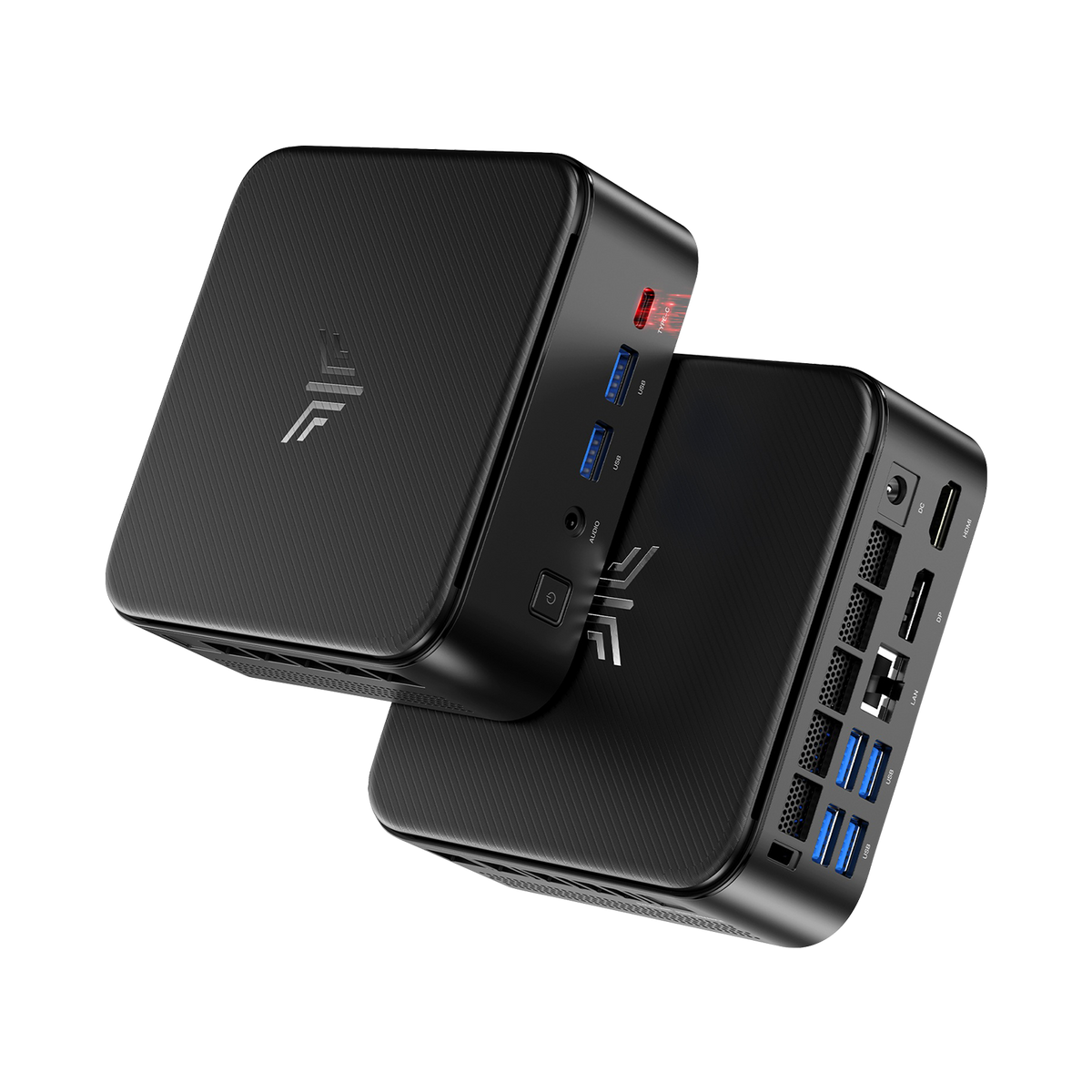

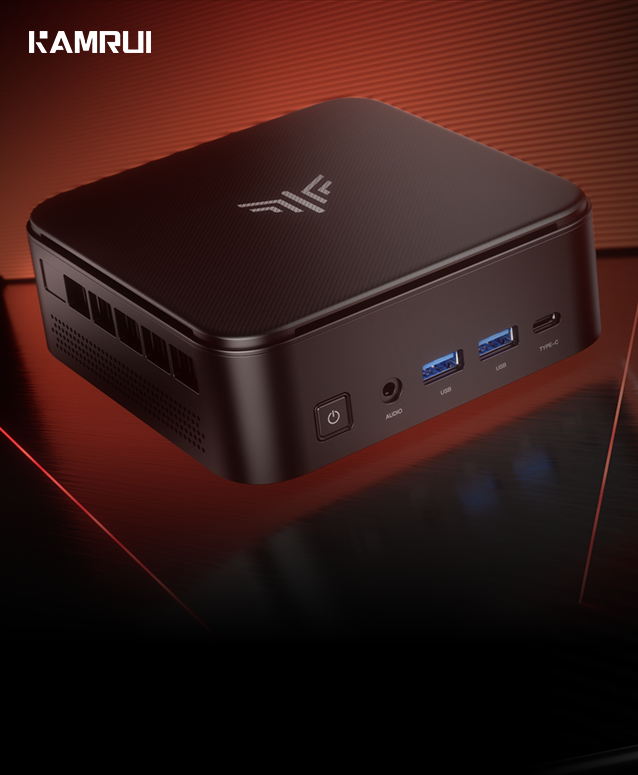

E3B MINI PC Powerful MINI PC
AMD Ryzen 7 5700U
AMD Radeon RX Vega 8

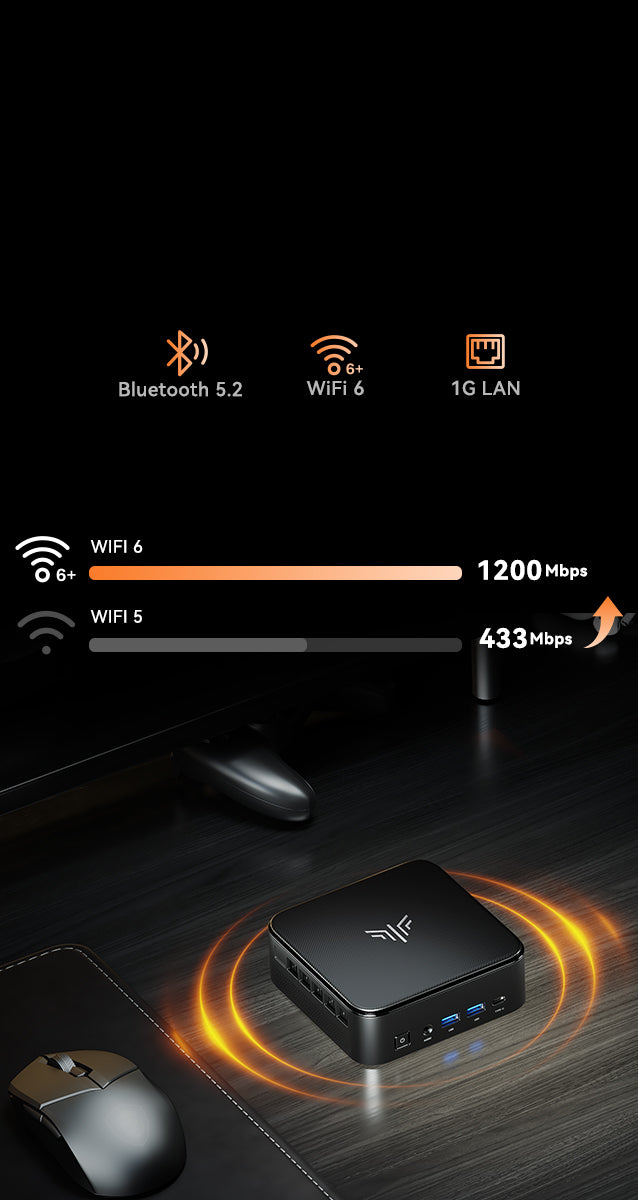

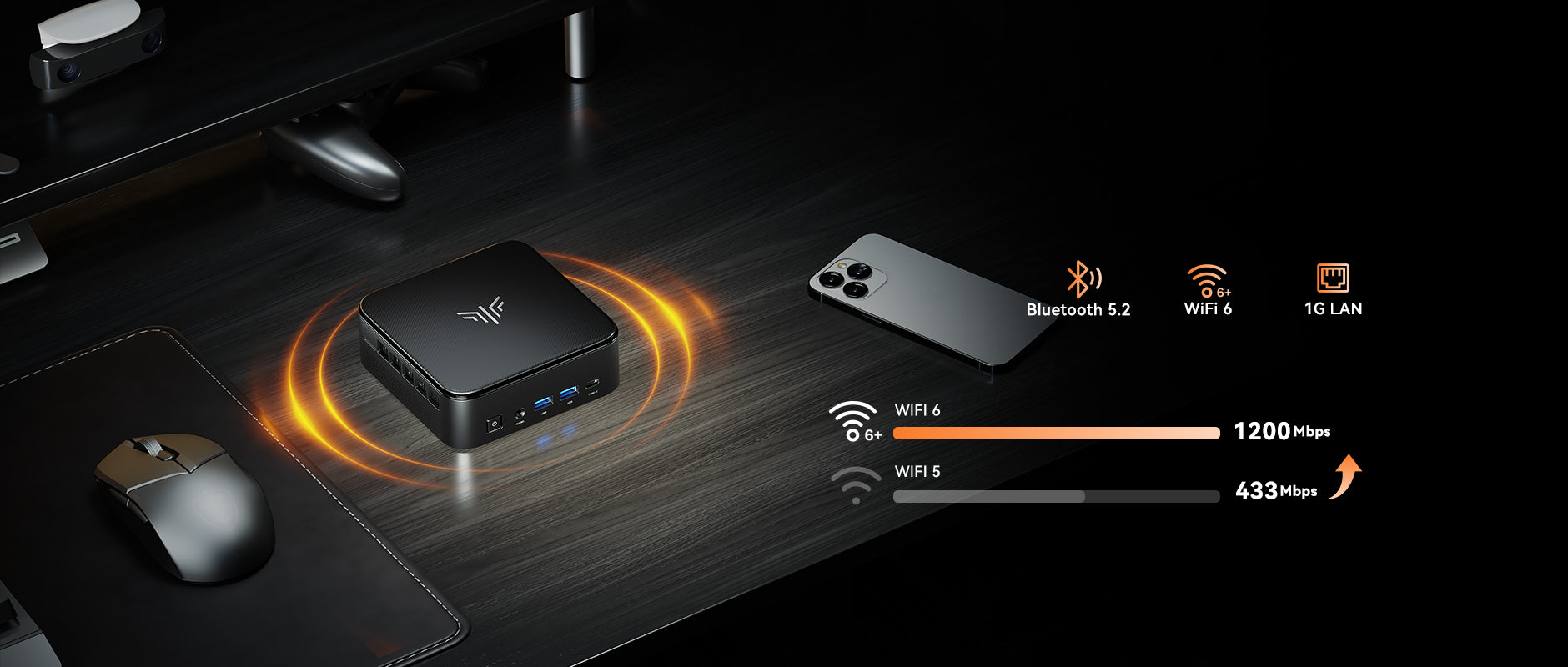

Enjoy Wireless Connection

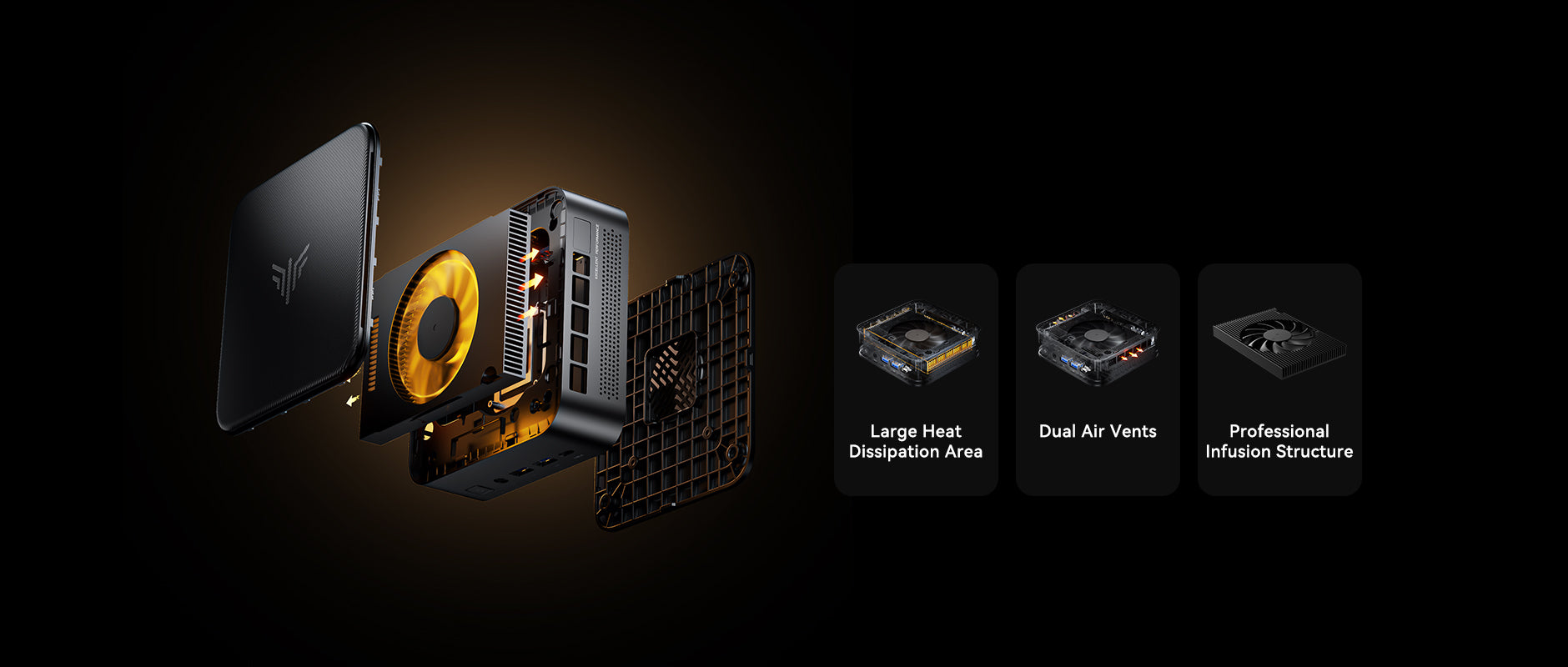

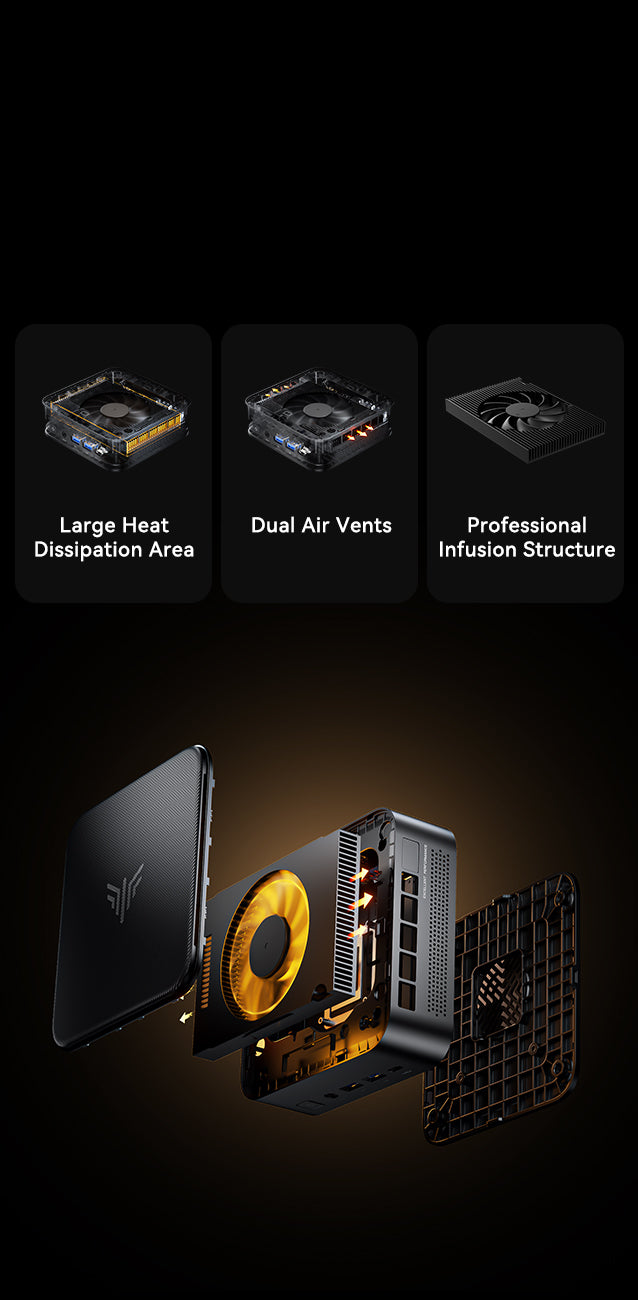

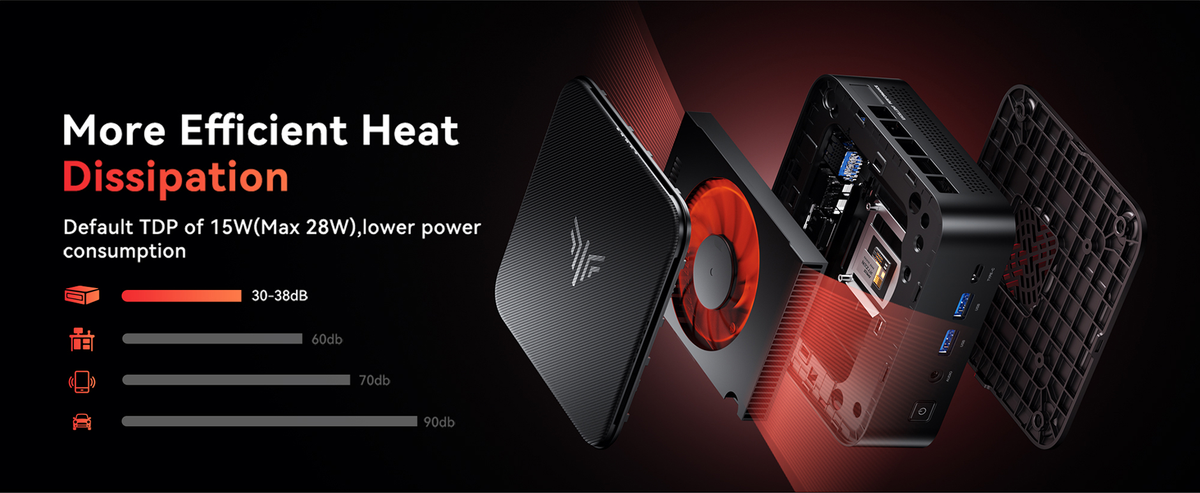

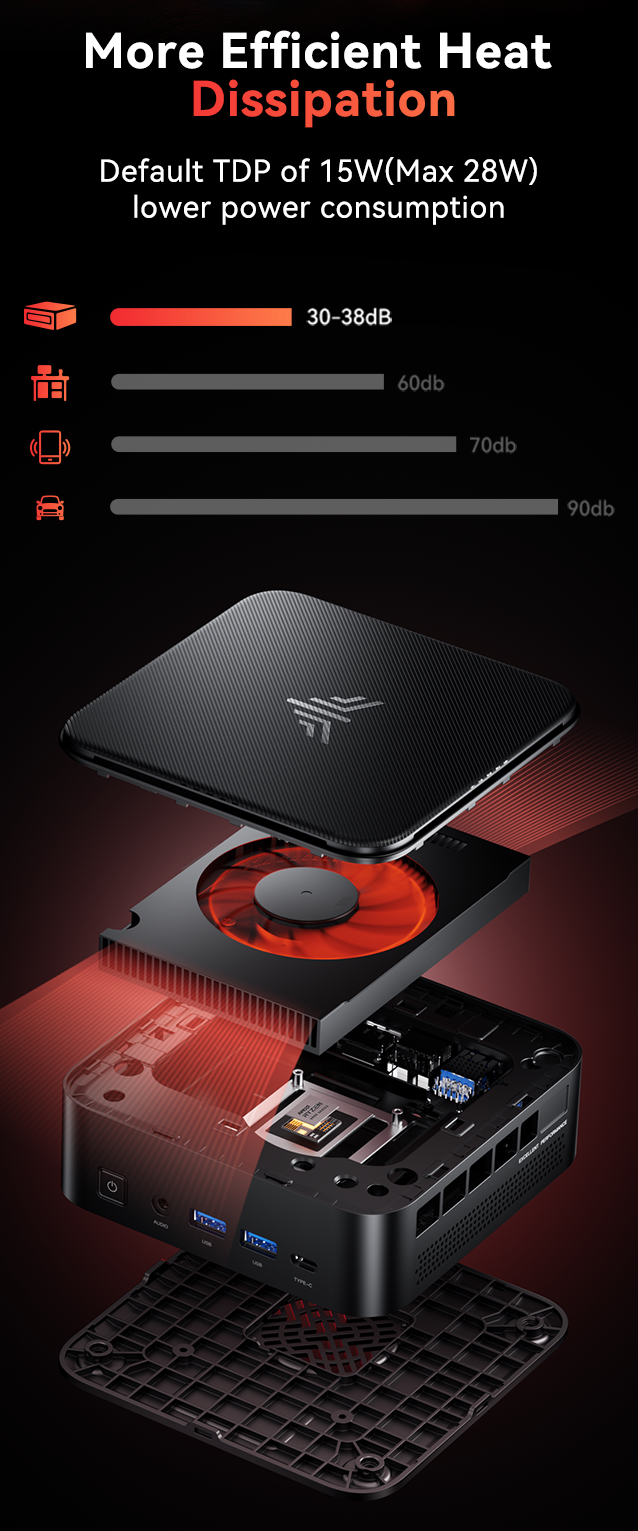

Large Fan Cooling System

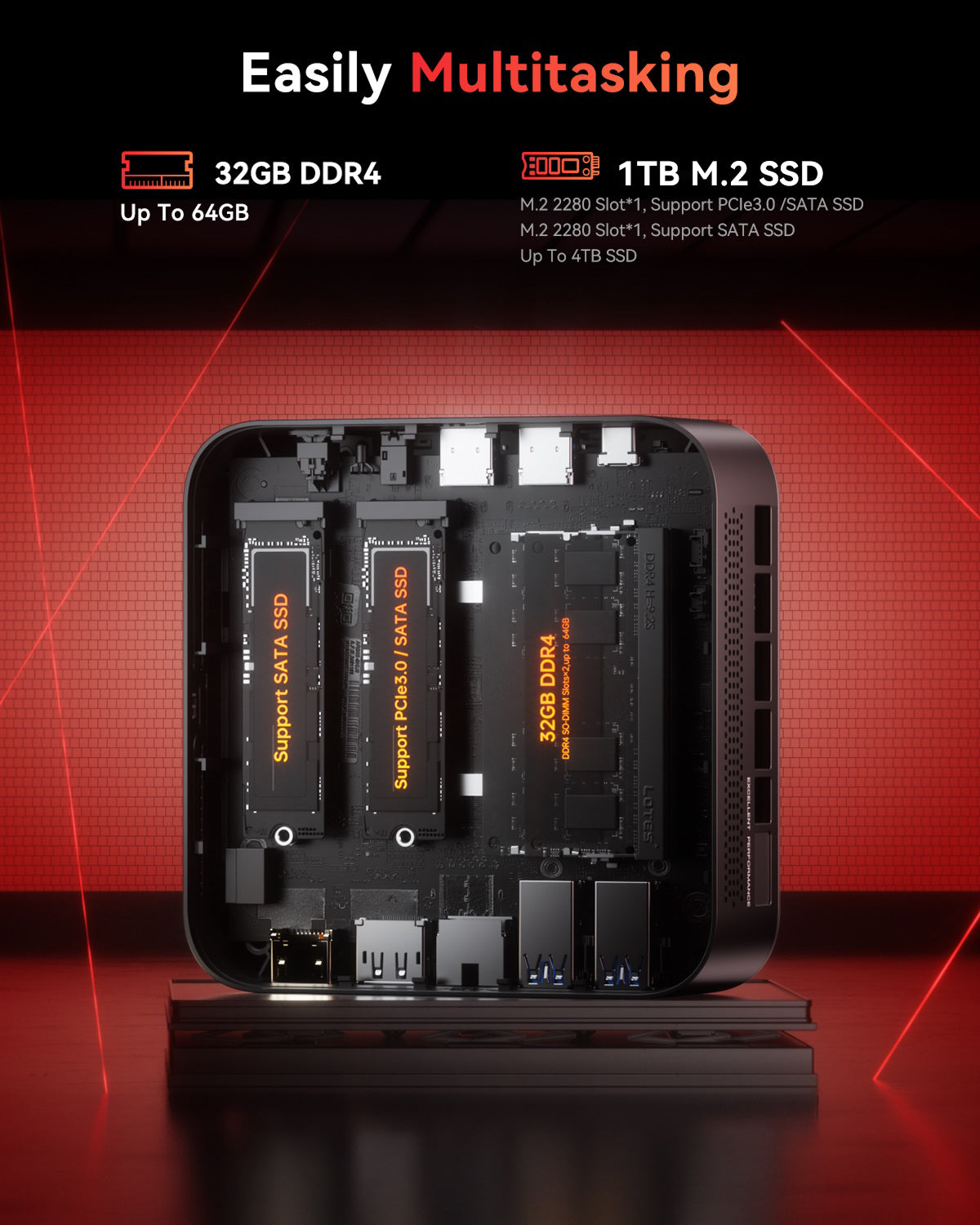

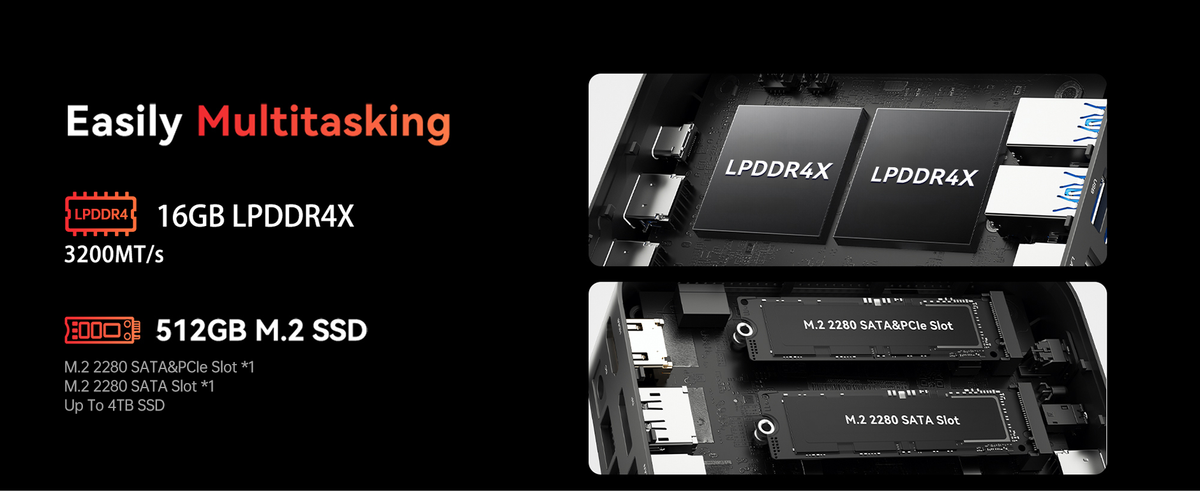

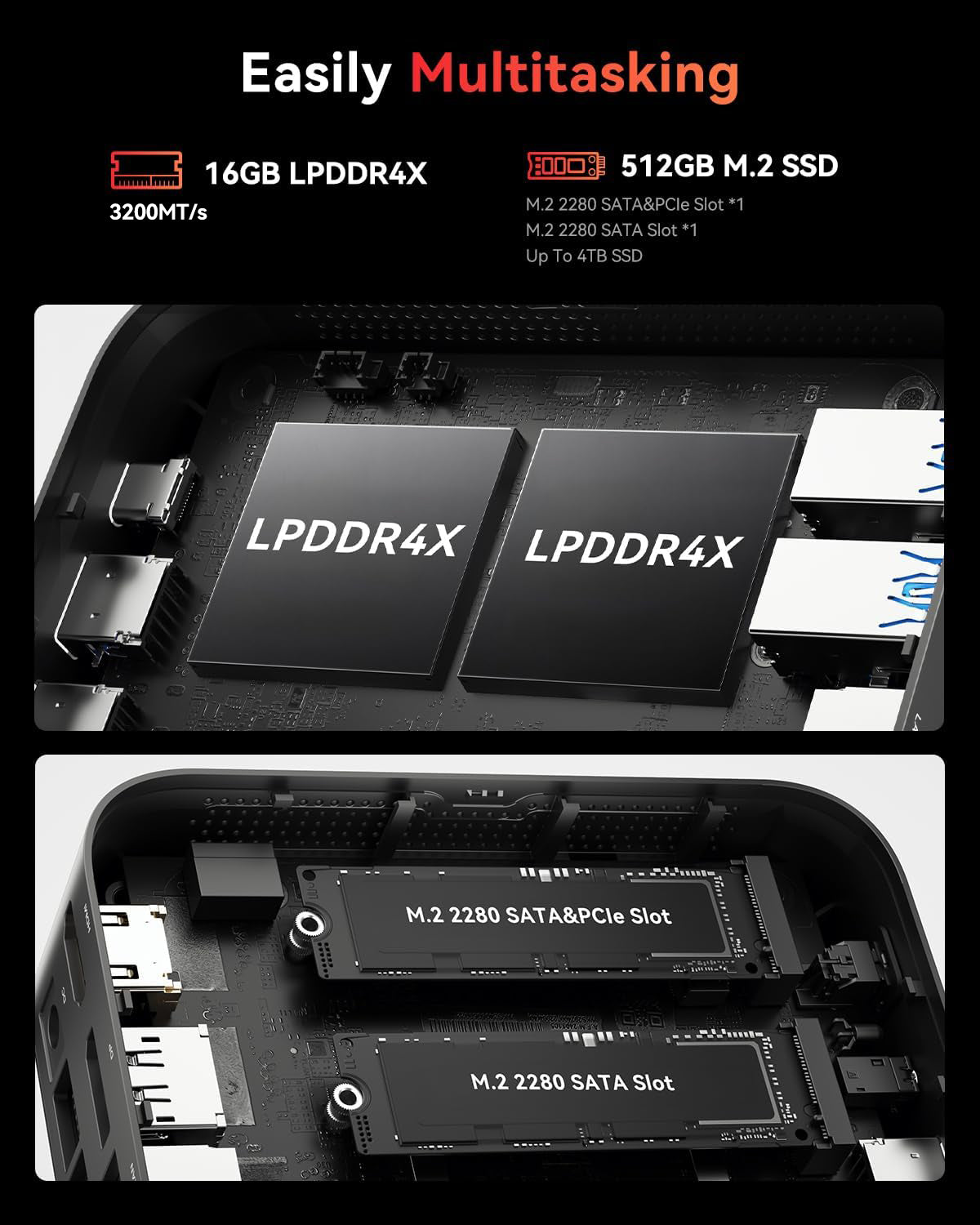

Handle Multiple Apps Easily

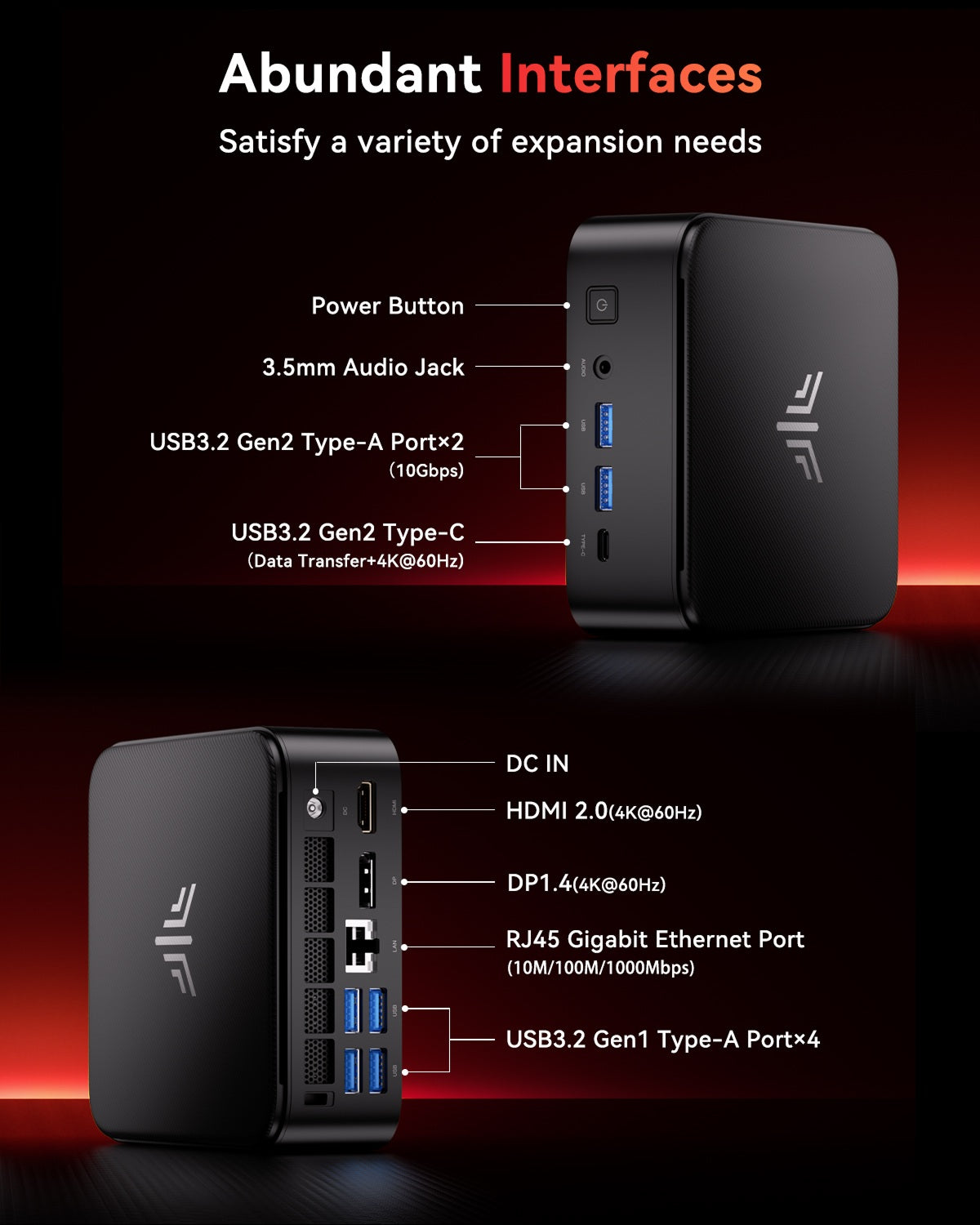

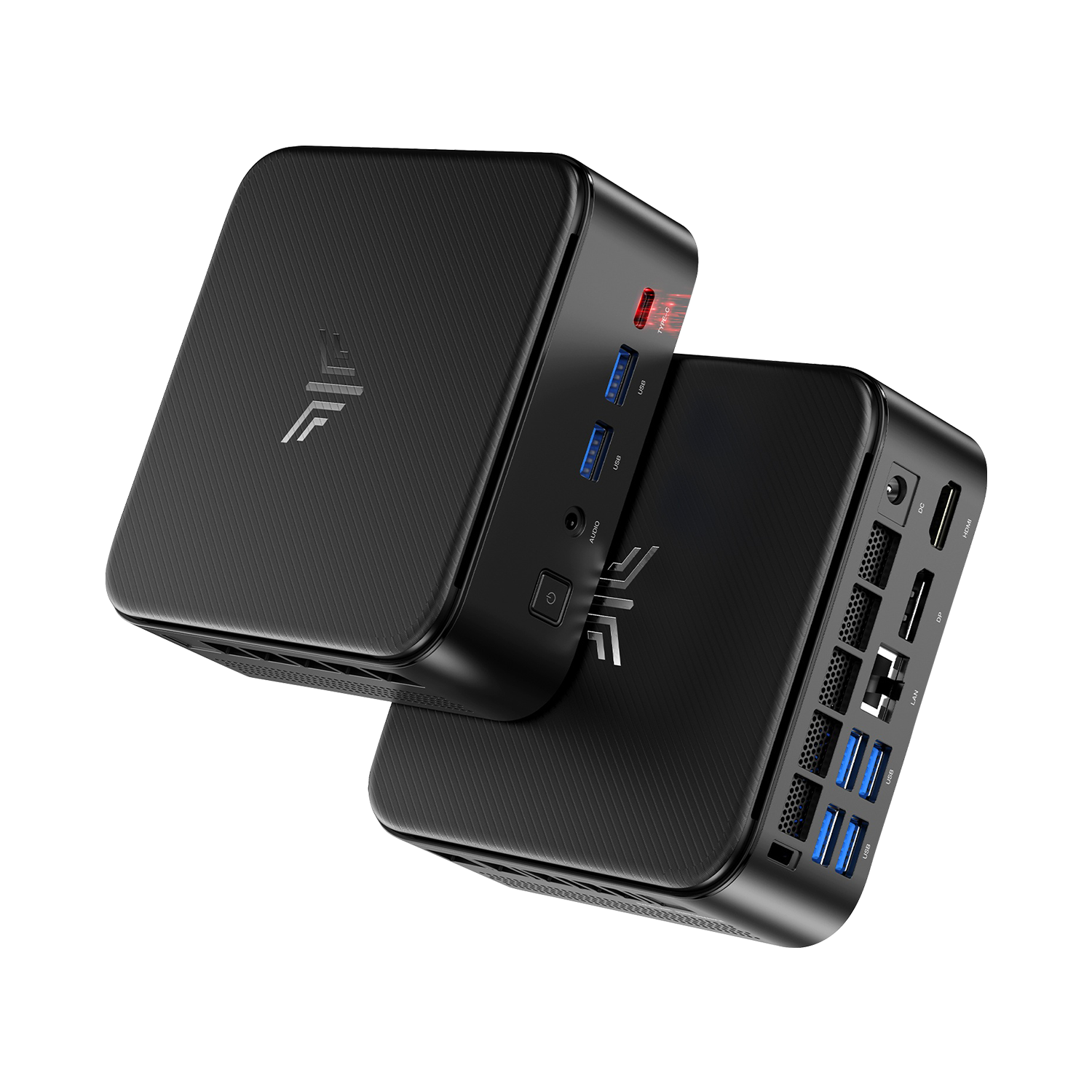

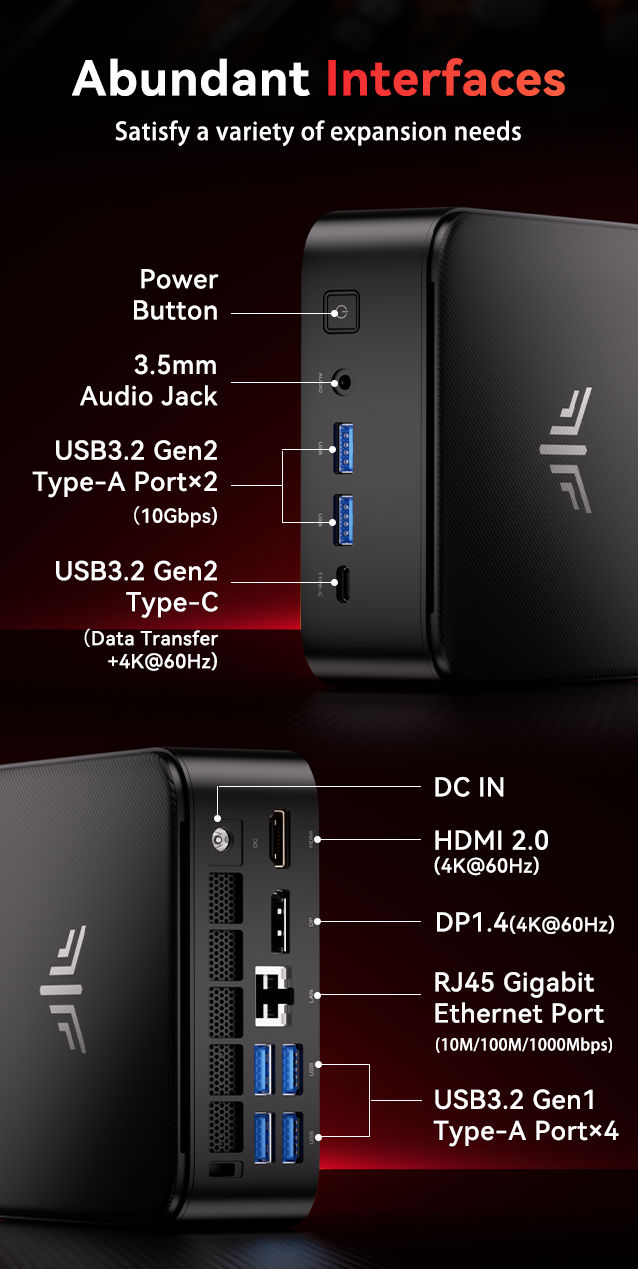

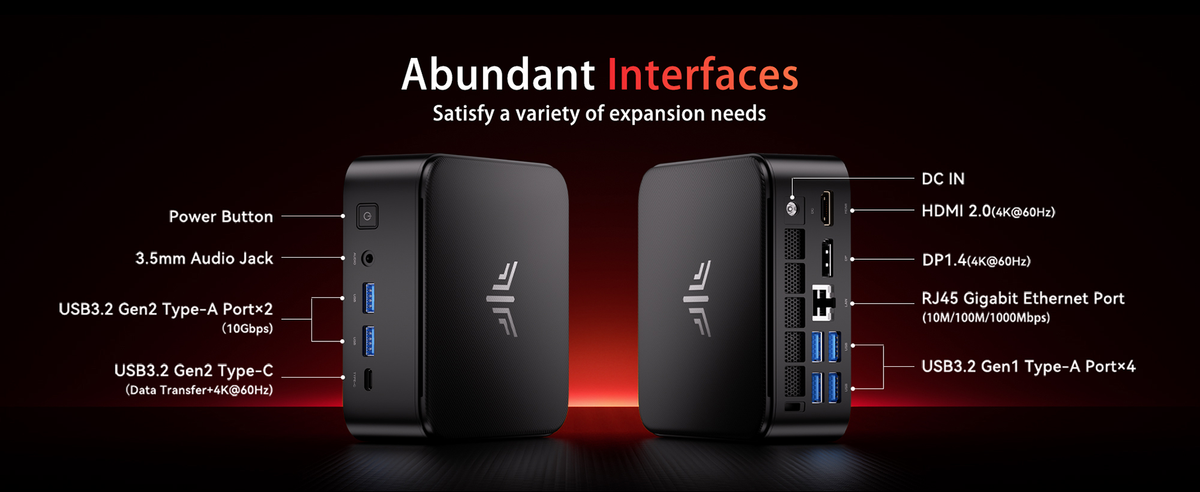

Rich Interfaces, Easy to Expand

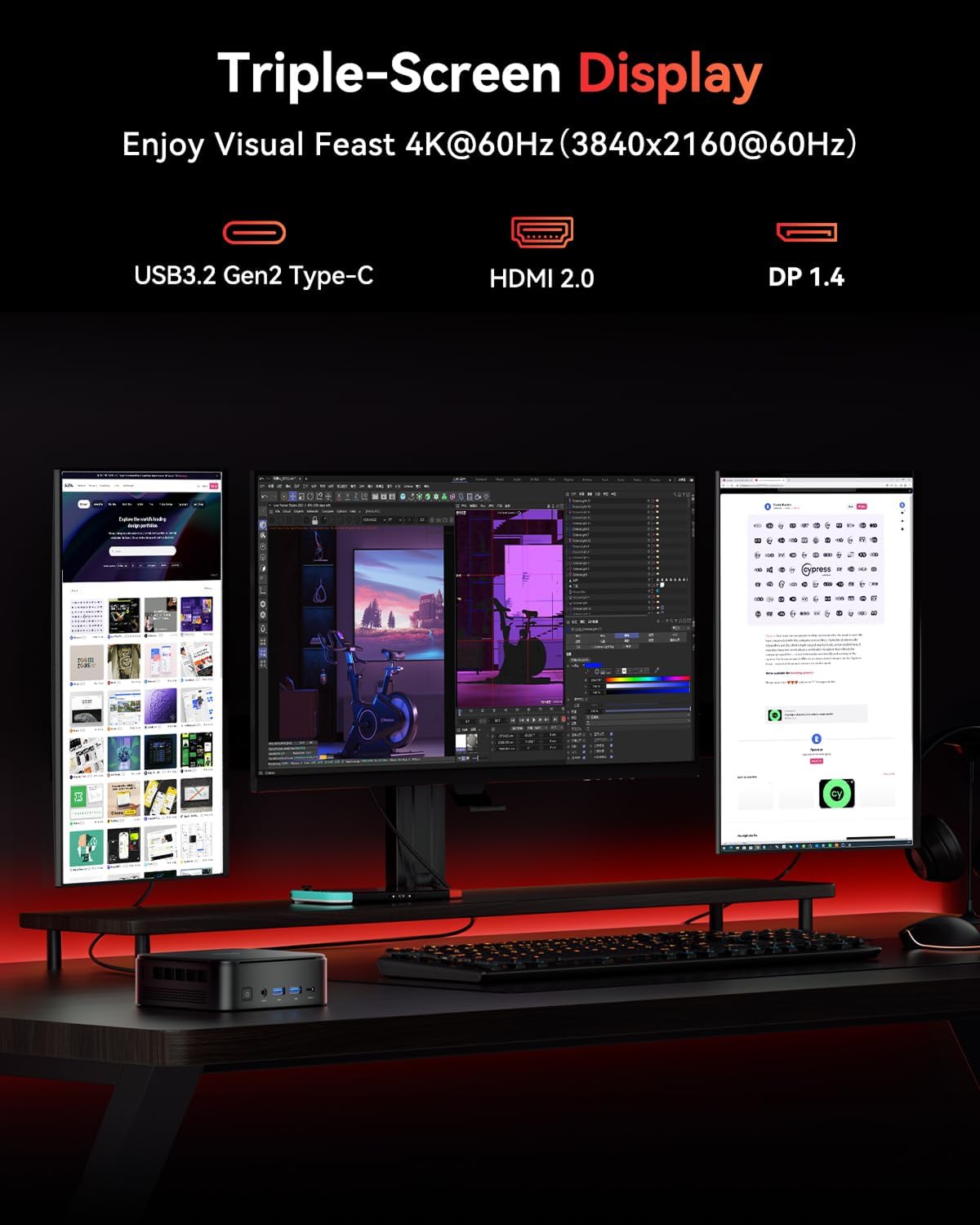

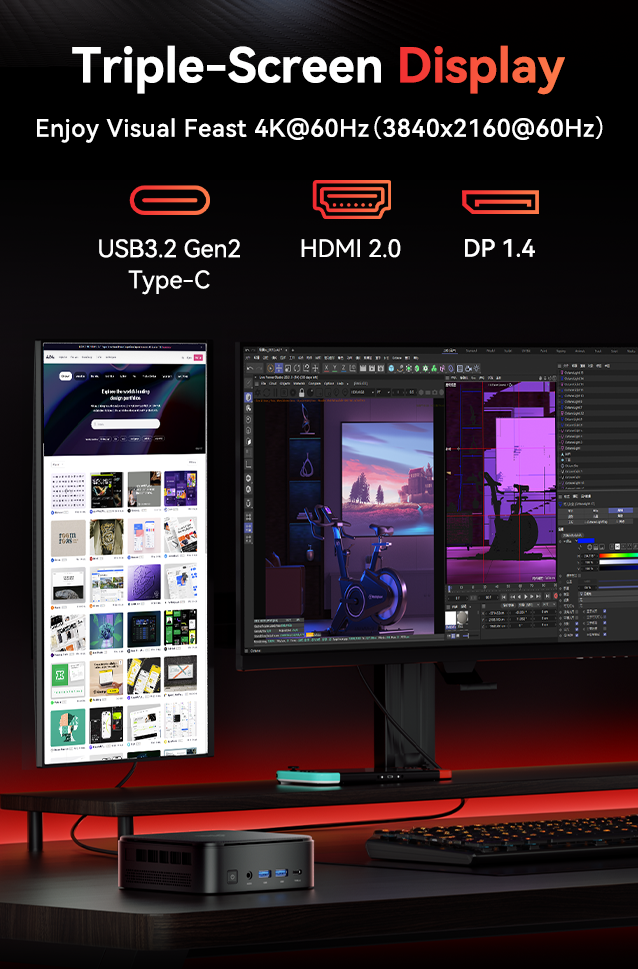

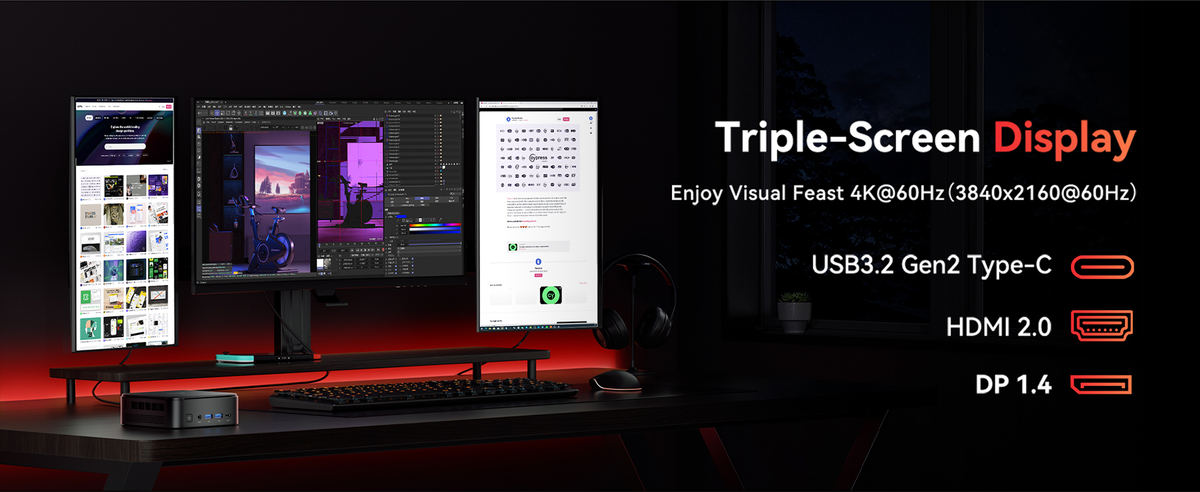

Infinite ViewMulti-Screen Experience

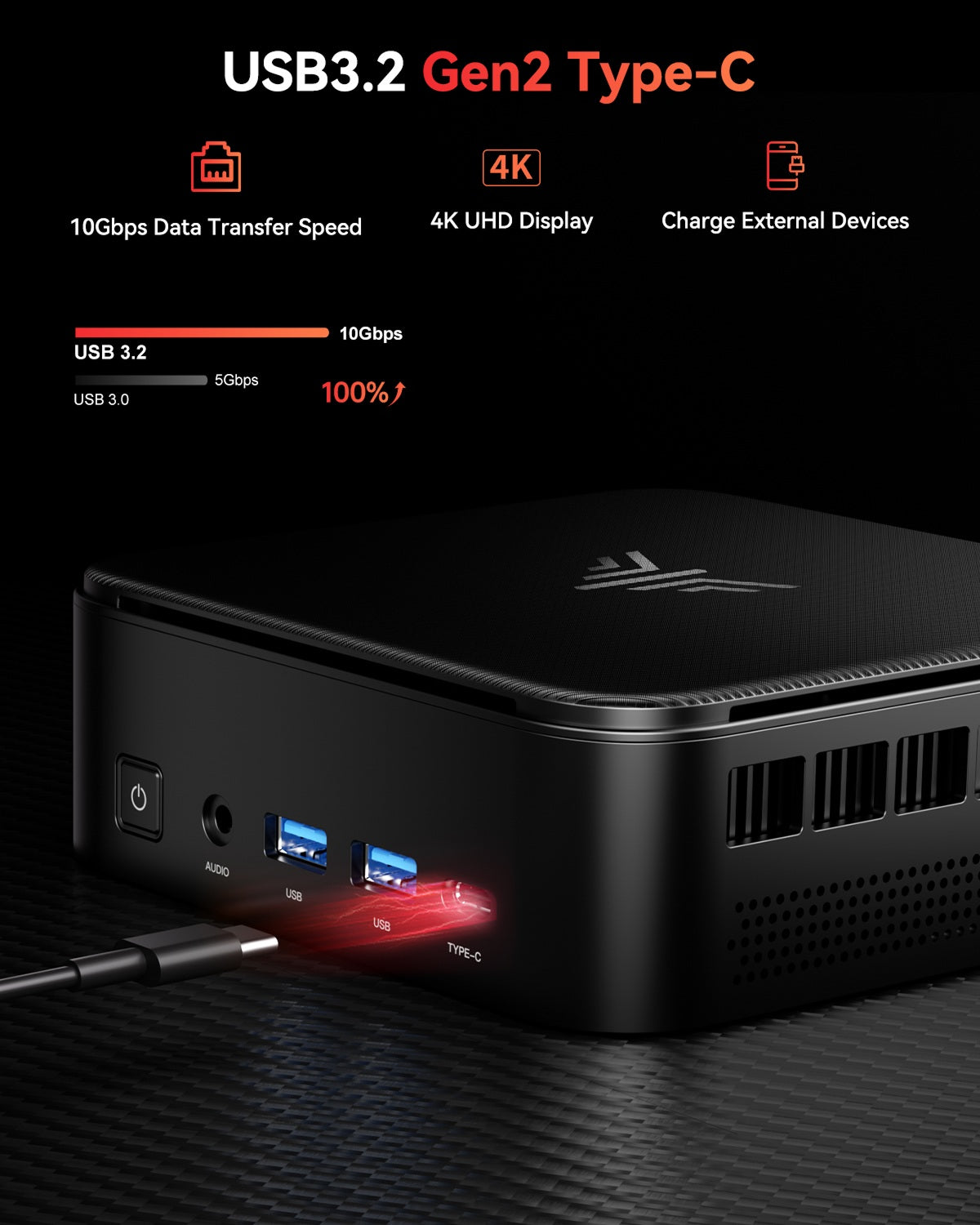

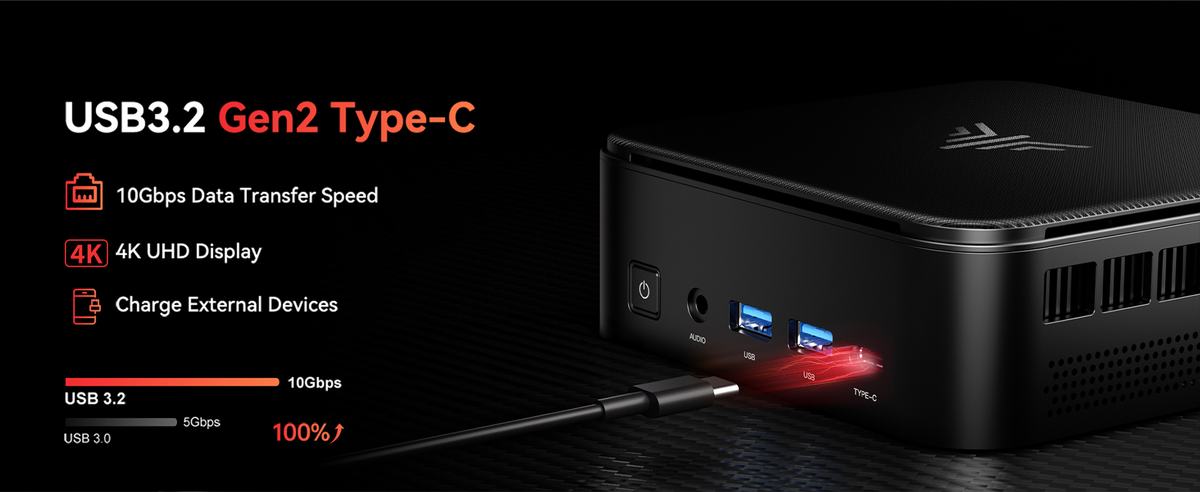

Full-Featured Type-C

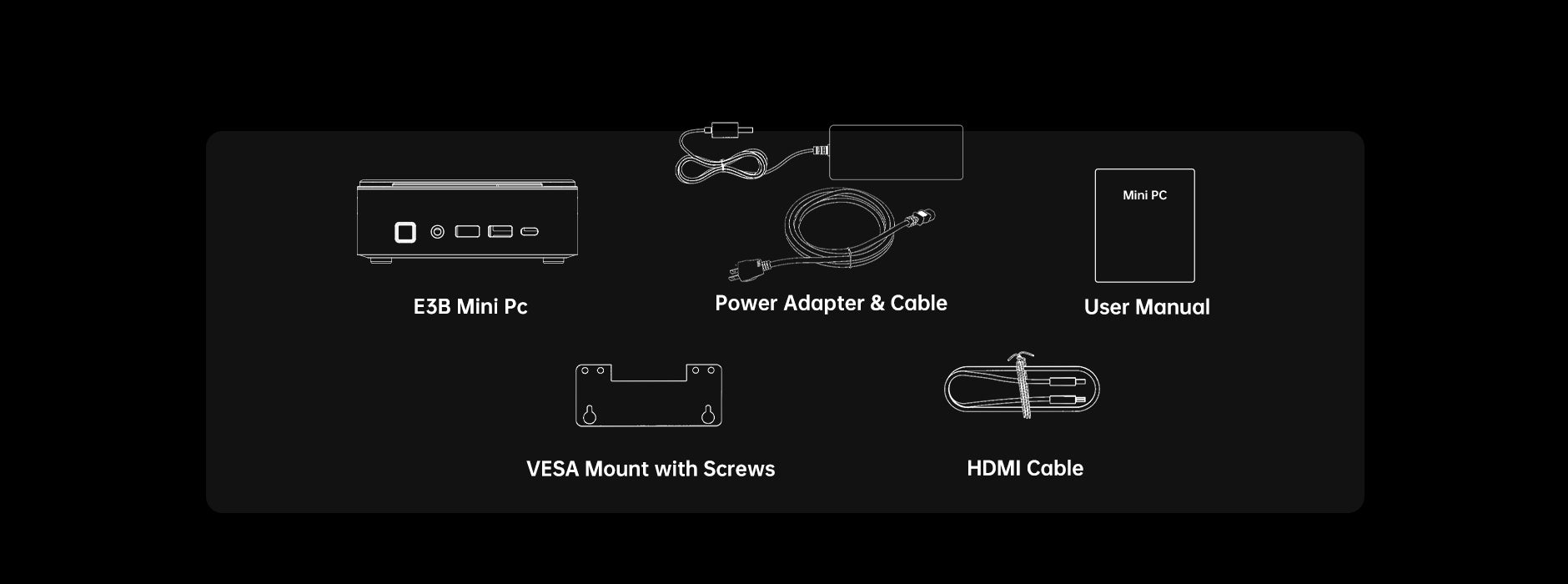

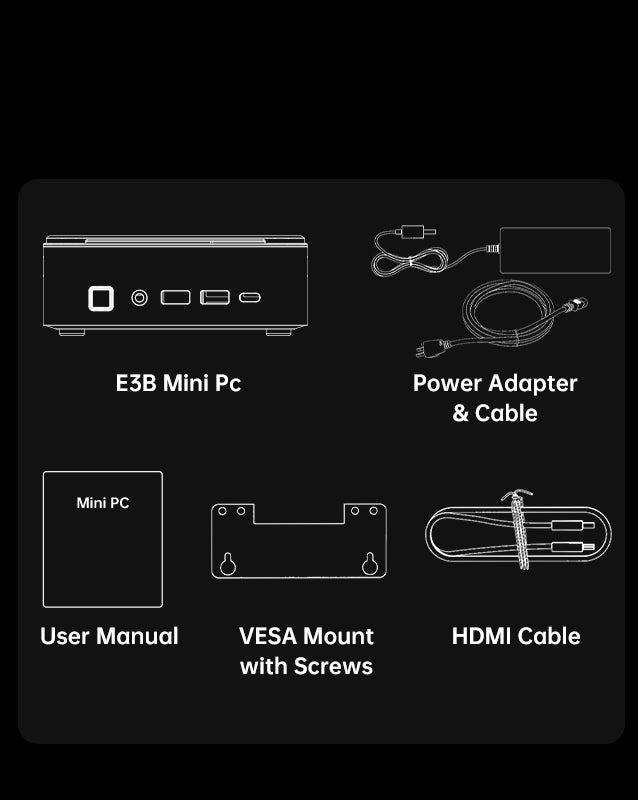

Detail Package Content
