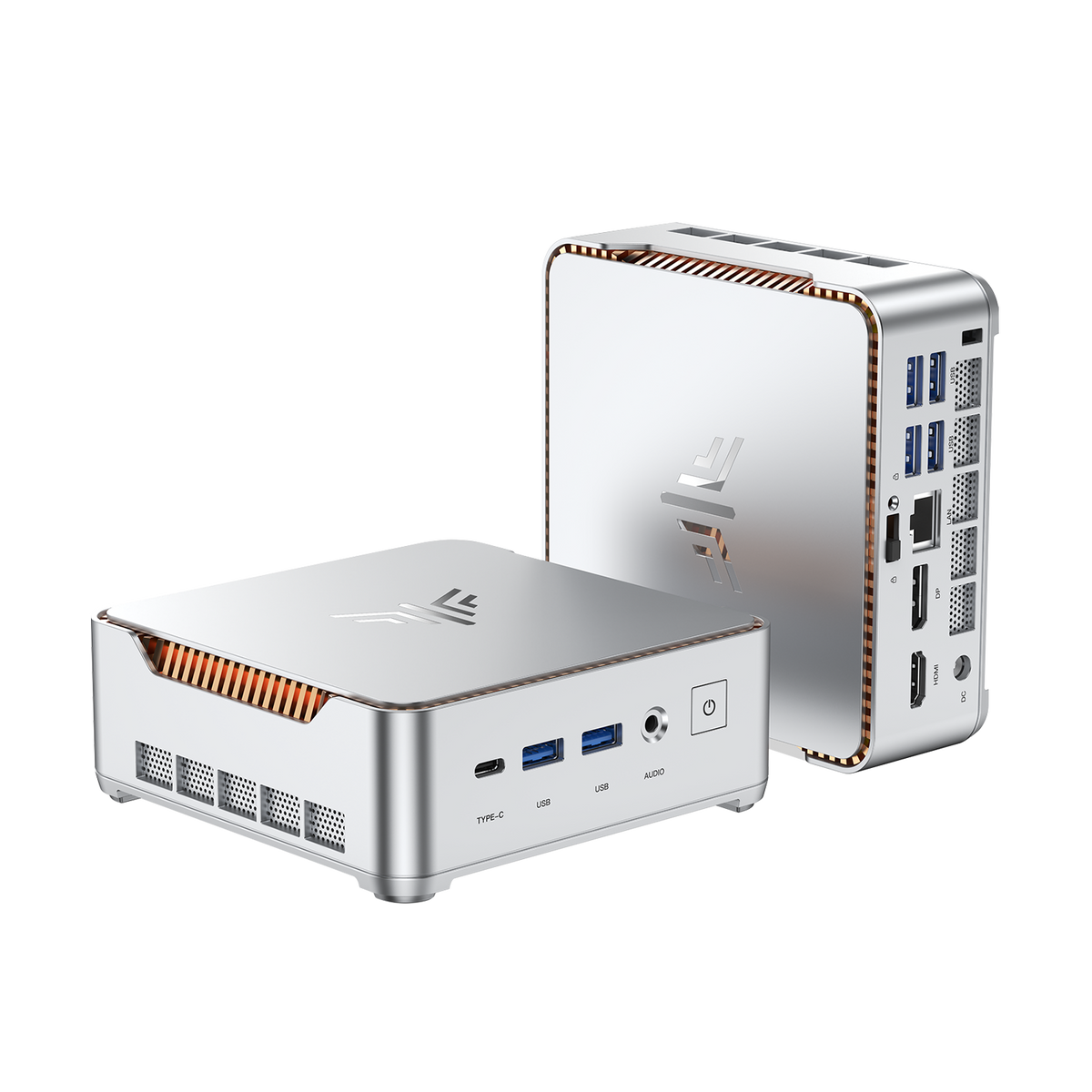

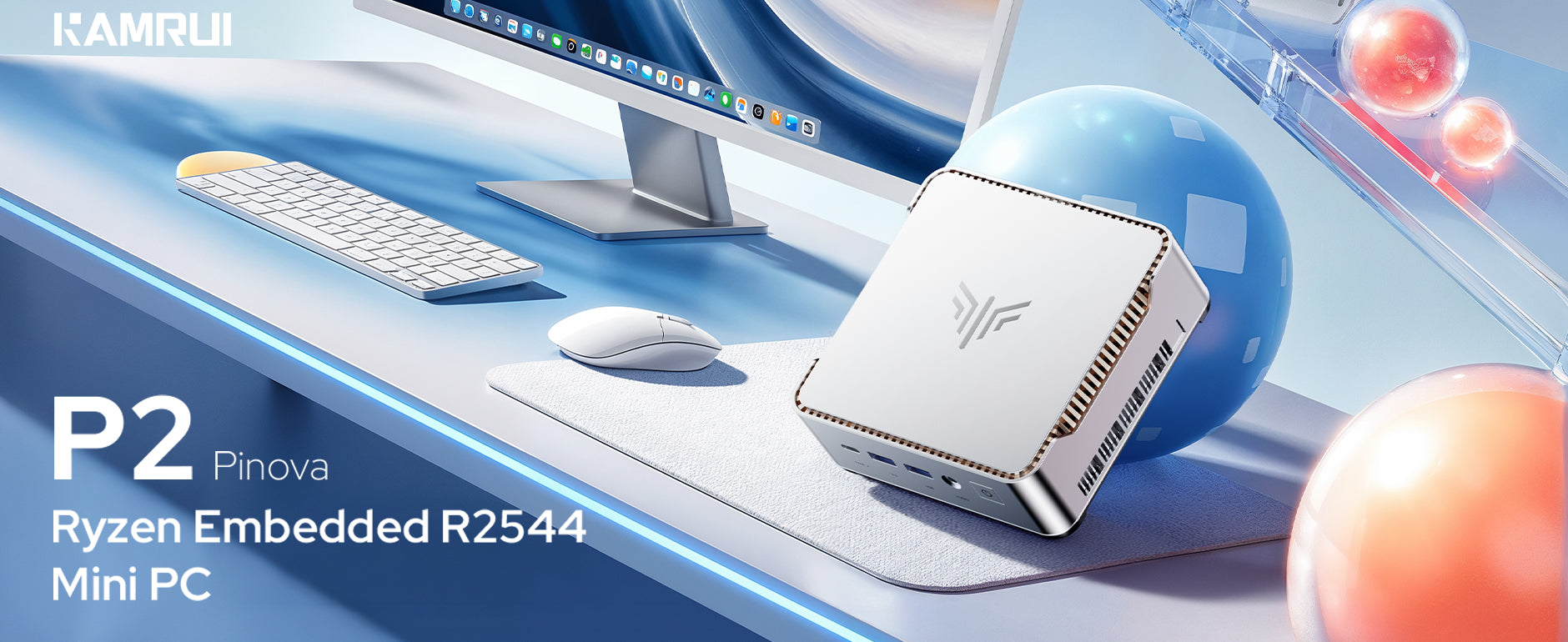

Description
xThe KAMRUI P2 Mini PC is powered by AMD Ryzen™ Embedded R2544(Beat R5 3500U/R3 4300U/N150/i3 10110U) processor, featuring 4 cores and 8 threads with a max boost clock of up to 3.7 GHz. It is equipped with integrated AMD Radeon™ Vega 8 Graphic, offering excellent performance for graphics-intensive tasks. This compact computer is ideal for video and photo editing, office productivity, 4K video playback, casual gaming, and home theater use.
AMD Ryzen Embedded R2544
x| Processor | AMD Ryzen Embedded R2544 Processor, 4 Cores/8 Threads, 4 MB Smart Cache, base frequency 3.35GHz, maximum acceleration clock frequency (Turbo) 3.7GHz |
| Graphics | AMD Radeon™ Vega 8 Graphic(Graphics Frequency 1300MHz, Graphics cores : 8) |
| Memory | 16GB DDR4 2666MHz(SO-DIMM Slot*2, up to 32GB, up to 3200MHz) |
| Storage | 512GB M.2 2280 SATA SSD (M.2 2280 Slot*2, M.2 2280 SATA&NVMe PCIe3.0×2 Slot *1 ，M.2 2280 NVMe PCIe3.0×4 Slot *1, up to 4TB) |
| Wireless Connectivity | WiFi 5, BT4.2 (M.2 2230） |
| Video Output | HDMI 2.0*1 (4K@60Hz） DP1.4b*1 (4K@60Hz) USB3.2 Gen1 Type-C*1 (4K@60Hz) |
| Audio Output |
HDMI 2.0 * 1 USB3.2 Gen1 Type-C*1 DP1.4b* 1 3.5mm Phone Jack * 1 |
| Ports & Buttons | 10M/100M/1000Mbps LAN Port *1 USB3.2 Gen1 Type-A Port *6 (5Gbps) USB3.2 Gen1 Type-C *1 (Support DP1.4, 4K@60Hz, data transfer) DC IN *1 HDMI 2.0 *1 DP1.4b *1 3.5mm Audio Jack *1 Power Button *1 |
| Power | DC 19V/3.42A，DC Header 5.5*2.1mm |
| System | Windows 11 Pro |
| Dimensions | 128.2*128.2*44mm |

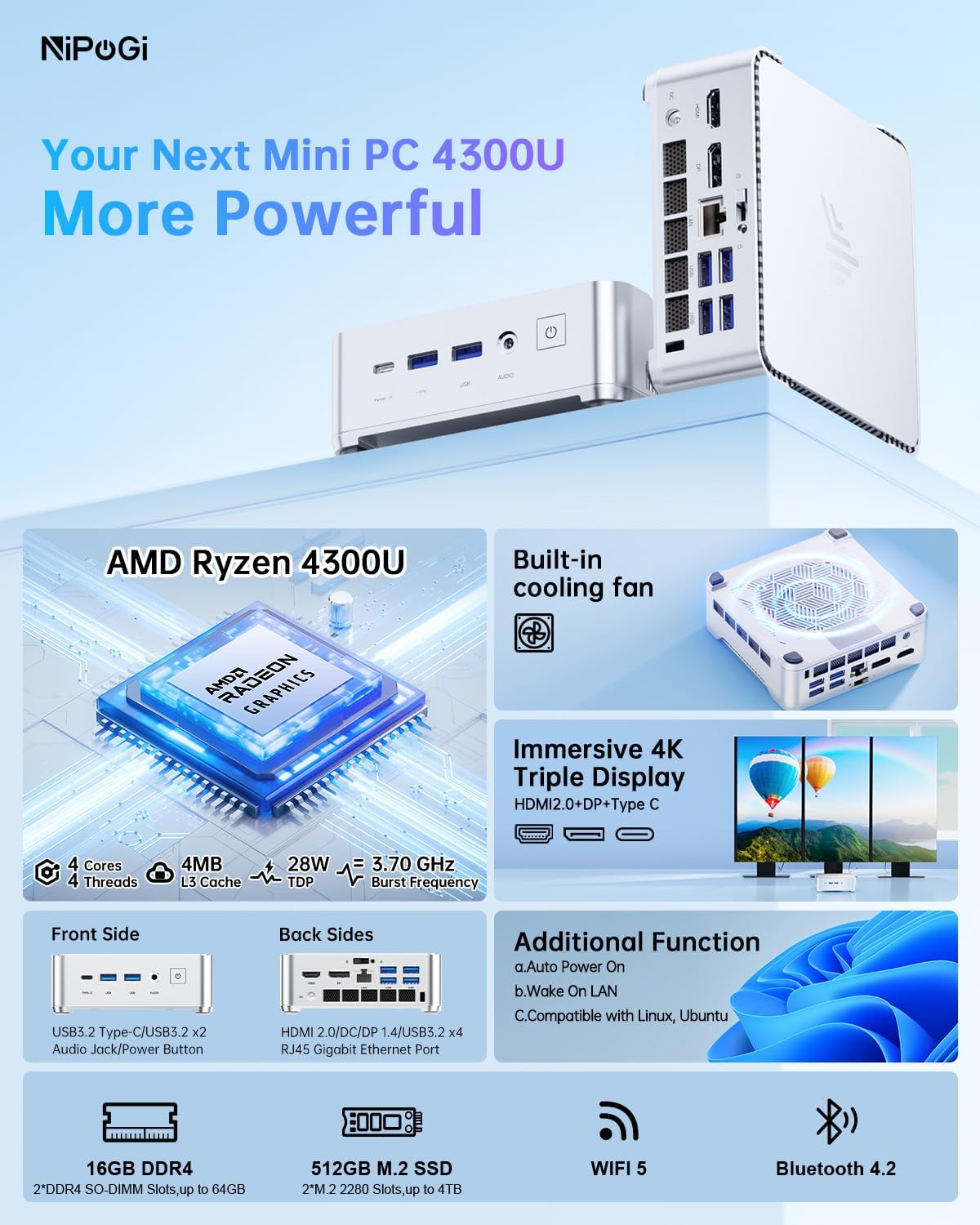

AMD Ryzen™ 3 4300U
x| Processor | AMD Ryzen™ 3 4300U Processor, 4 Cores/4 Threads, 4 MB Smart Cache, base frequency 2.7GHz, maximum acceleration clock frequency (Turbo) 3.7GHz |
| Graphics | AMD Radeon™ Graphics(Graphics Frequency 1400MHz, Graphics cores : 5) |
| Memory | 16GB DDR4 (SO-DIMM Slot*2, up to 64GB, up to 3200MHz) |
| Storage | 512GB M.2 2280 SATA SSD (M.2 2280 Slot*2, M.2 2280 SATA/NVMe PCIe3.0 Slot *1, M.2 2280 SATA*1, up to 4TB) |
| Wireless Connectivity | WiFi 5, BT4.2 (M.2 2230） |
| Video Output | HDMI 2.0*1 (4K@60Hz） DP1.4b*1 (4K@60Hz) USB3.2 Gen2 Type-C*1 (4K@60Hz) |
| Audio Output |
HDMI 2.0 * 1 USB3.2 Gen2 Type-C*1 DP1.4b* 1 3.5mm Phone Jack * 1 |
| Ports & Buttons | 10M/100M/1000Mbps LAN Port *1 USB3.2 Gen2 Type-A Port *2 USB3.2 Gen1 Type-A Port*4 USB3.2 Gen2 Type-C *1 (Support DP1.4, 4K@60Hz, 10Gbps data transfer) DC IN *1 HDMI 2.0 *1 DP1.4b *1 3.5mm Audio Jack *1 Power Button *1 |
| Power | DC 19V/3.42A，DC Header 5.5*2.1mm |
| System | Windows 11 Pro |
| Dimensions | 128.2*128.2*44mm |

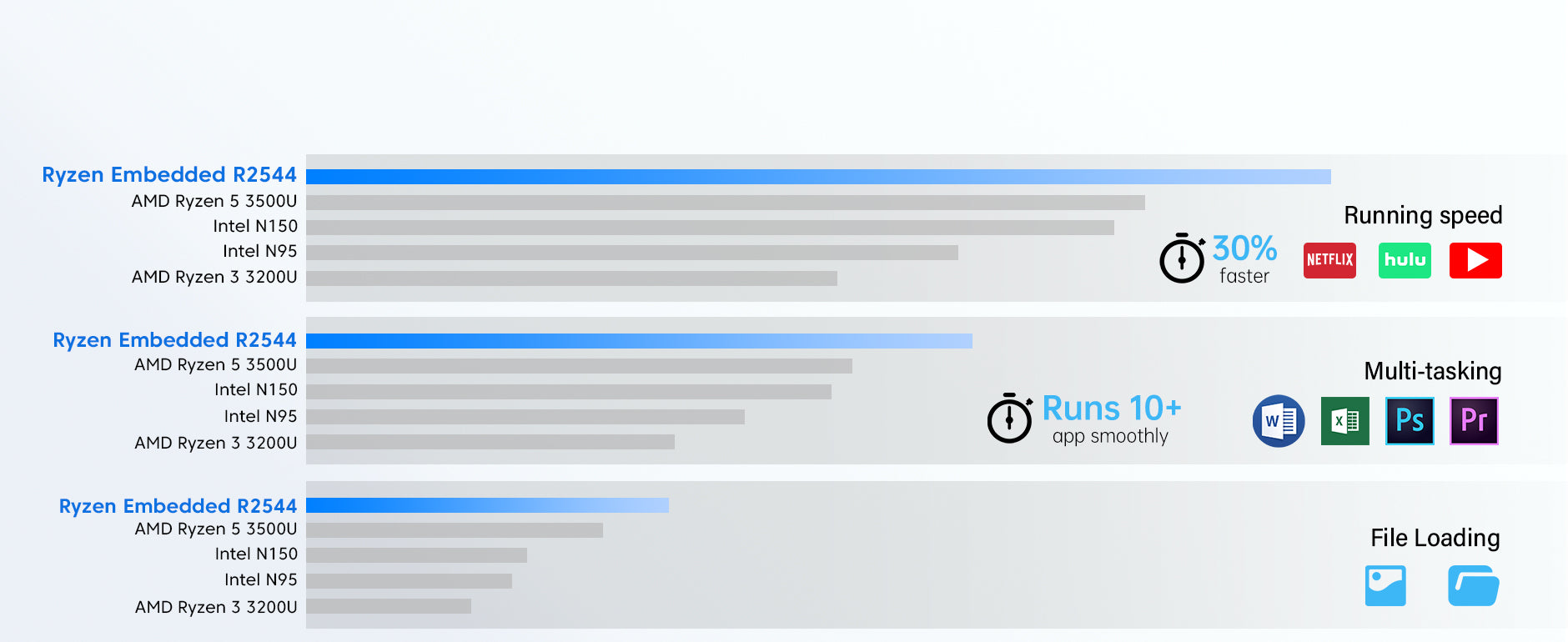

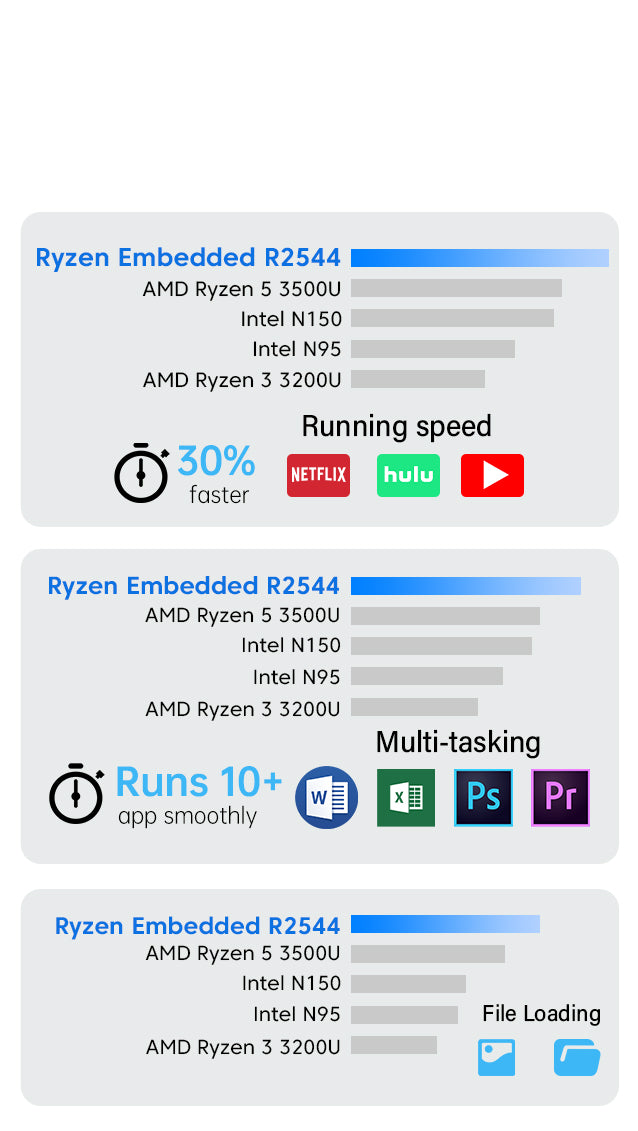

Higher Performance

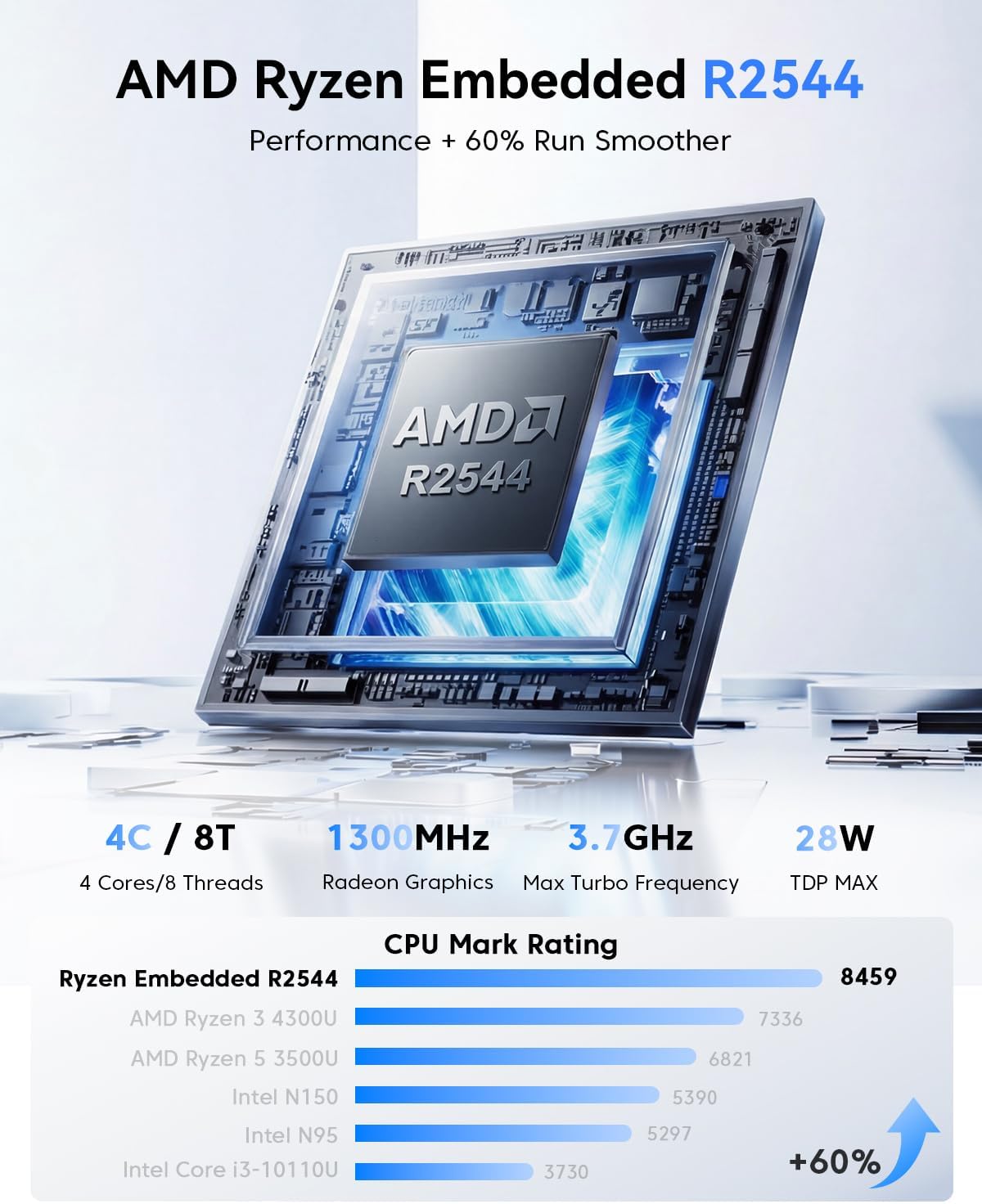

AMD Ryzen Embedded R2544

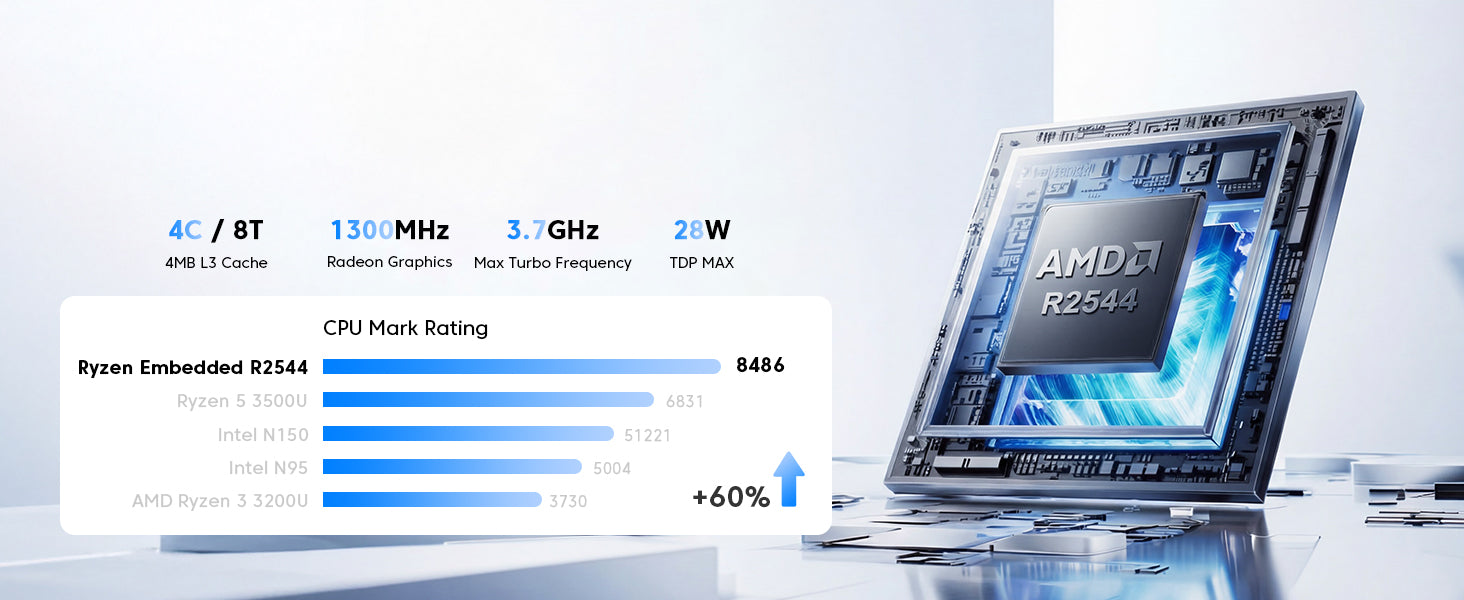

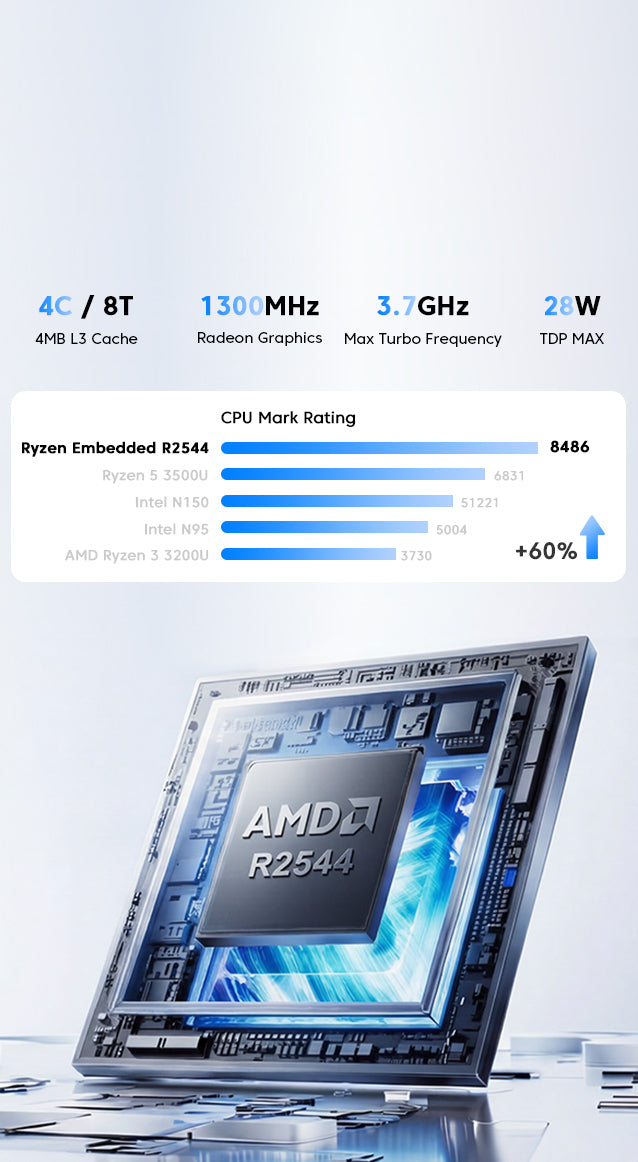

AMD Ryzen Embedded R2544, Superior Performance

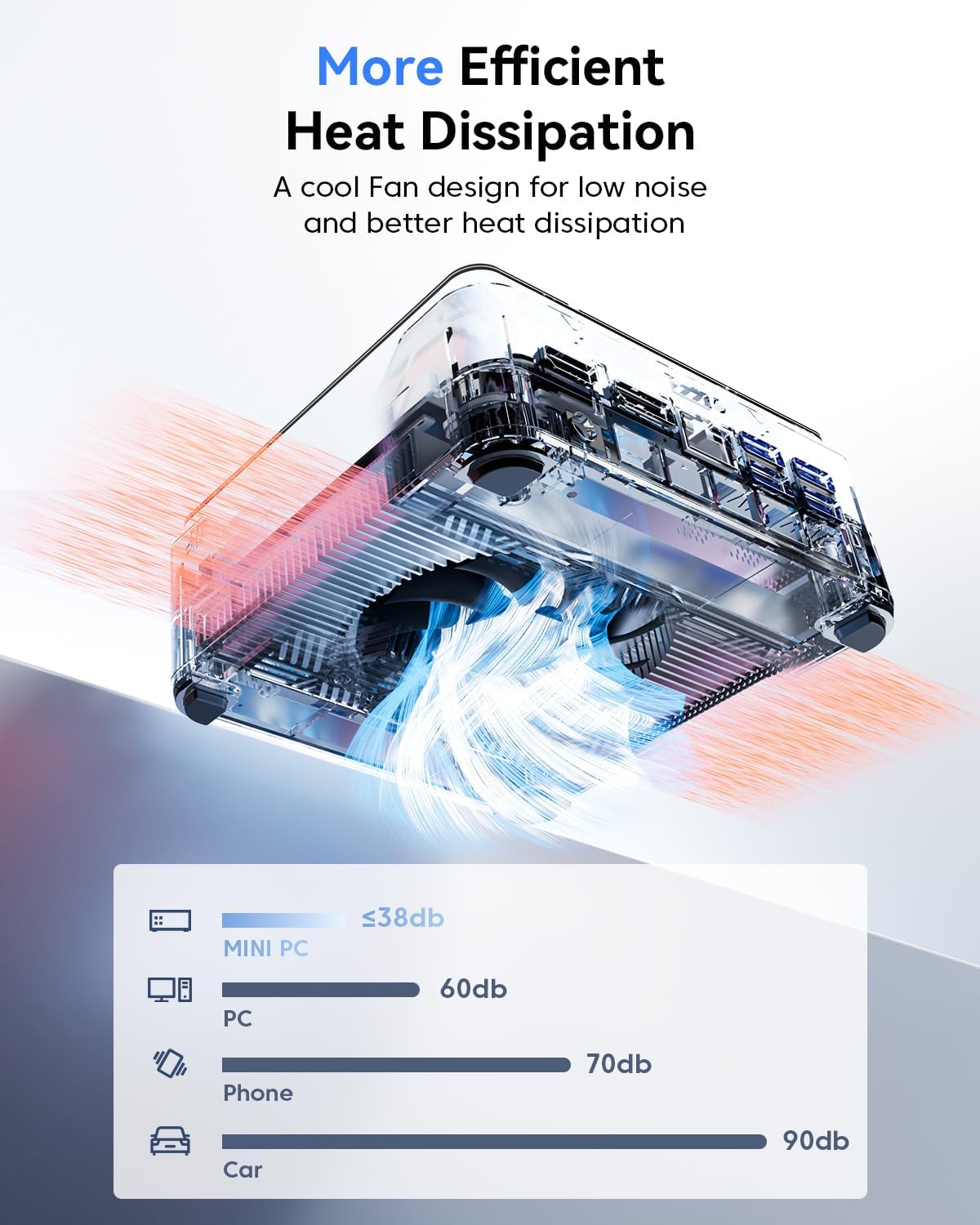

More Efficient Heat Dissipation

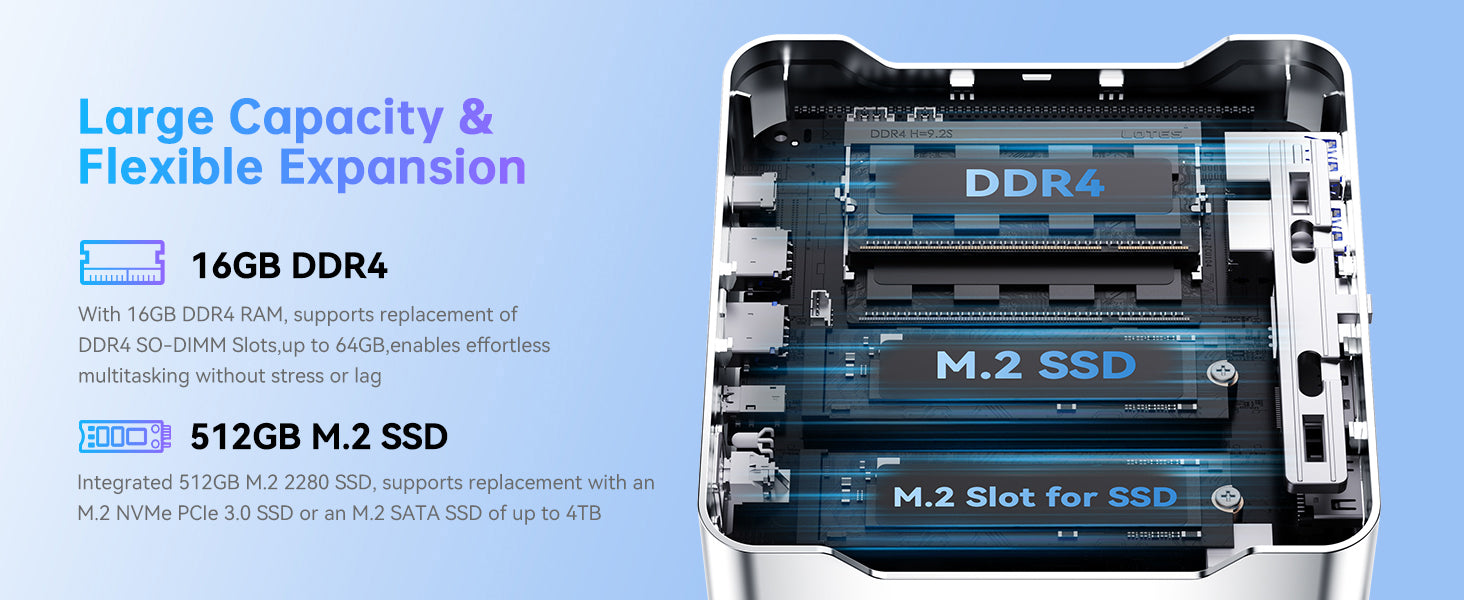

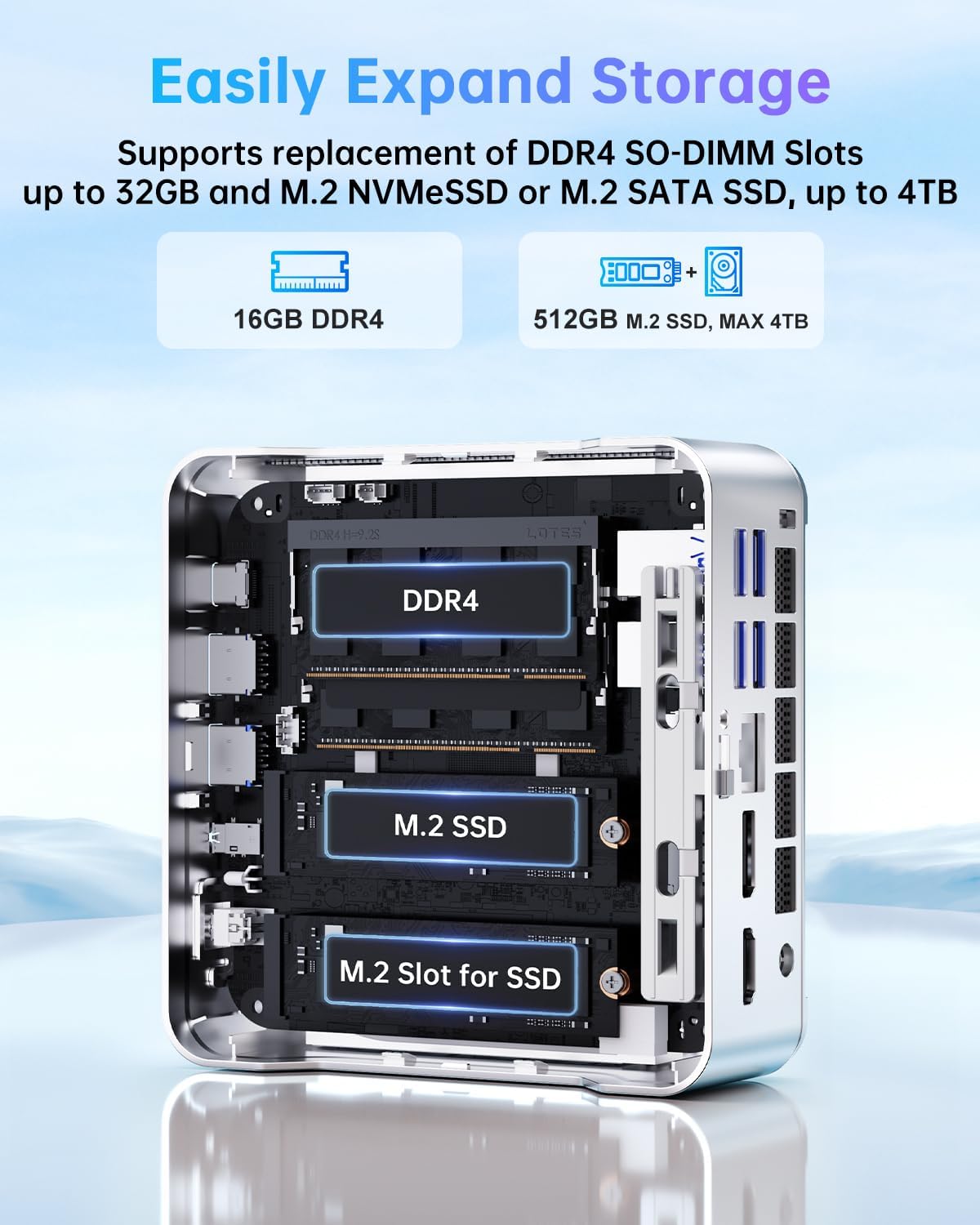

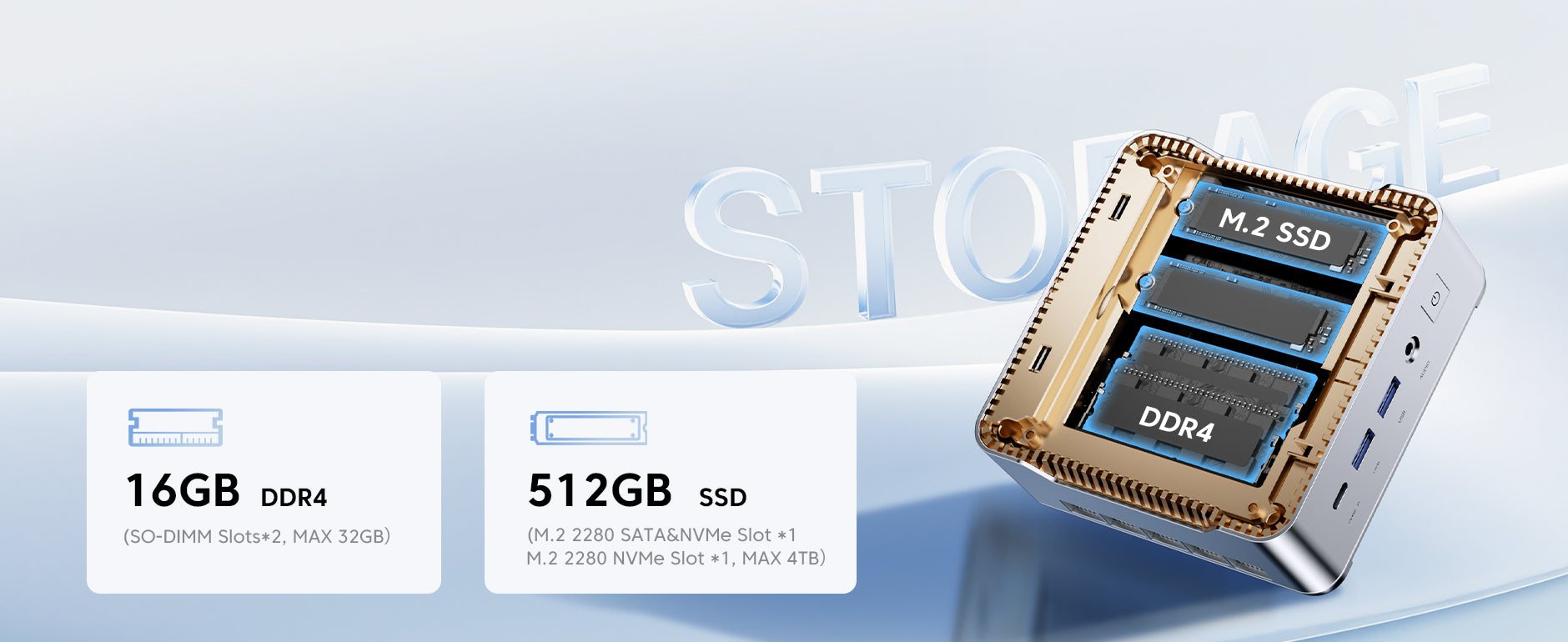

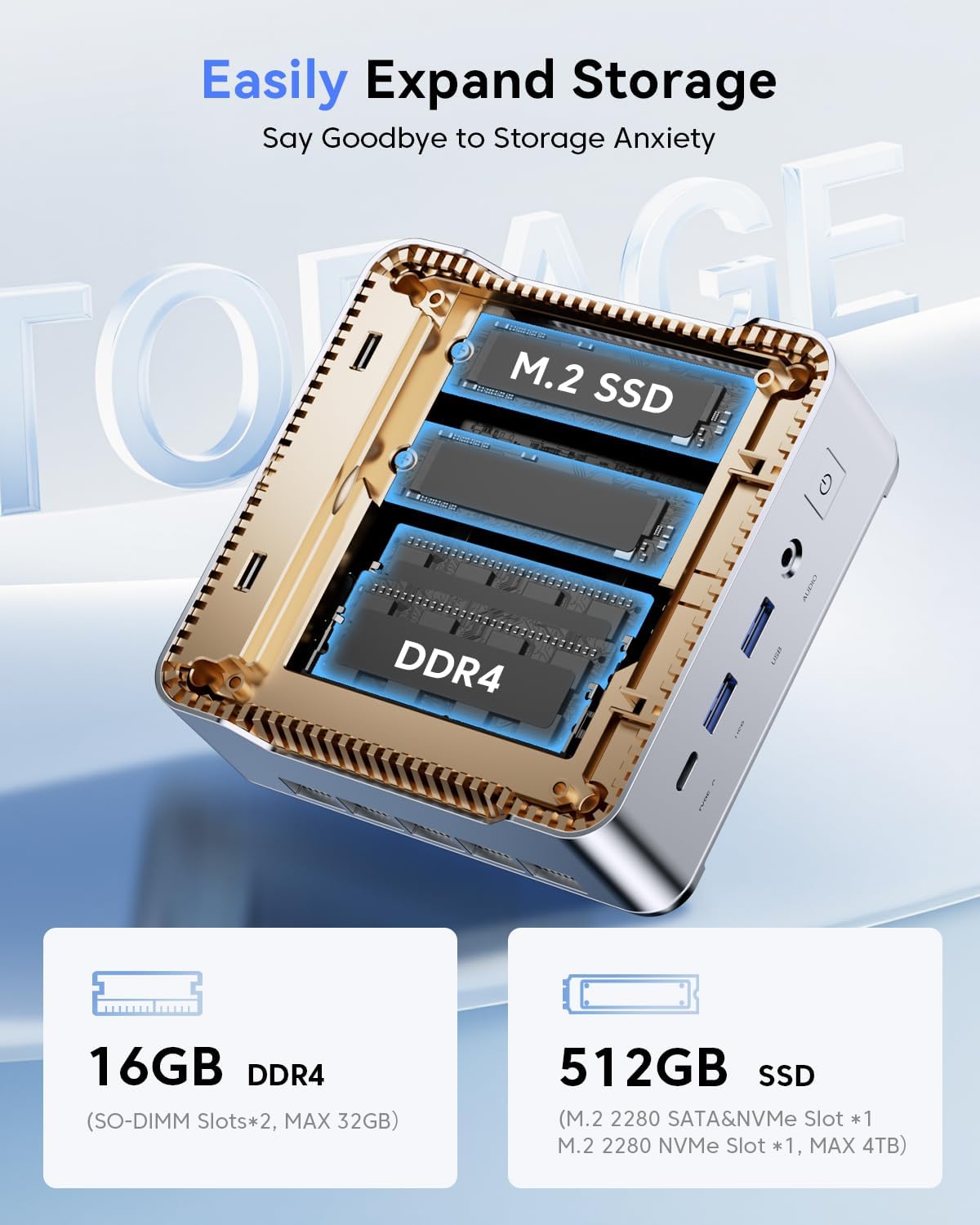

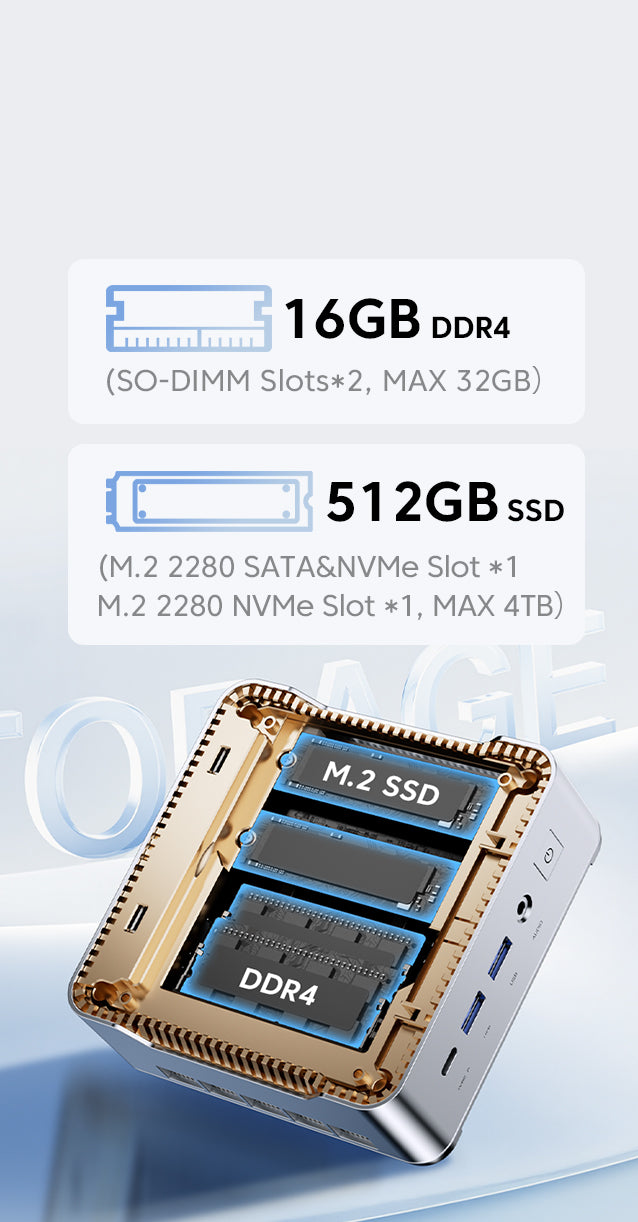

Easily Expand Storage

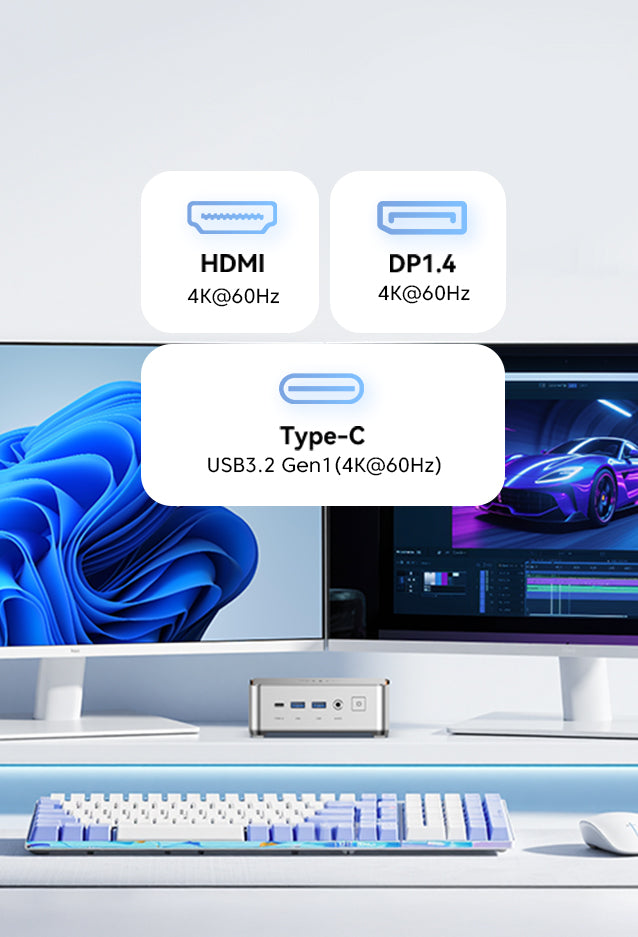

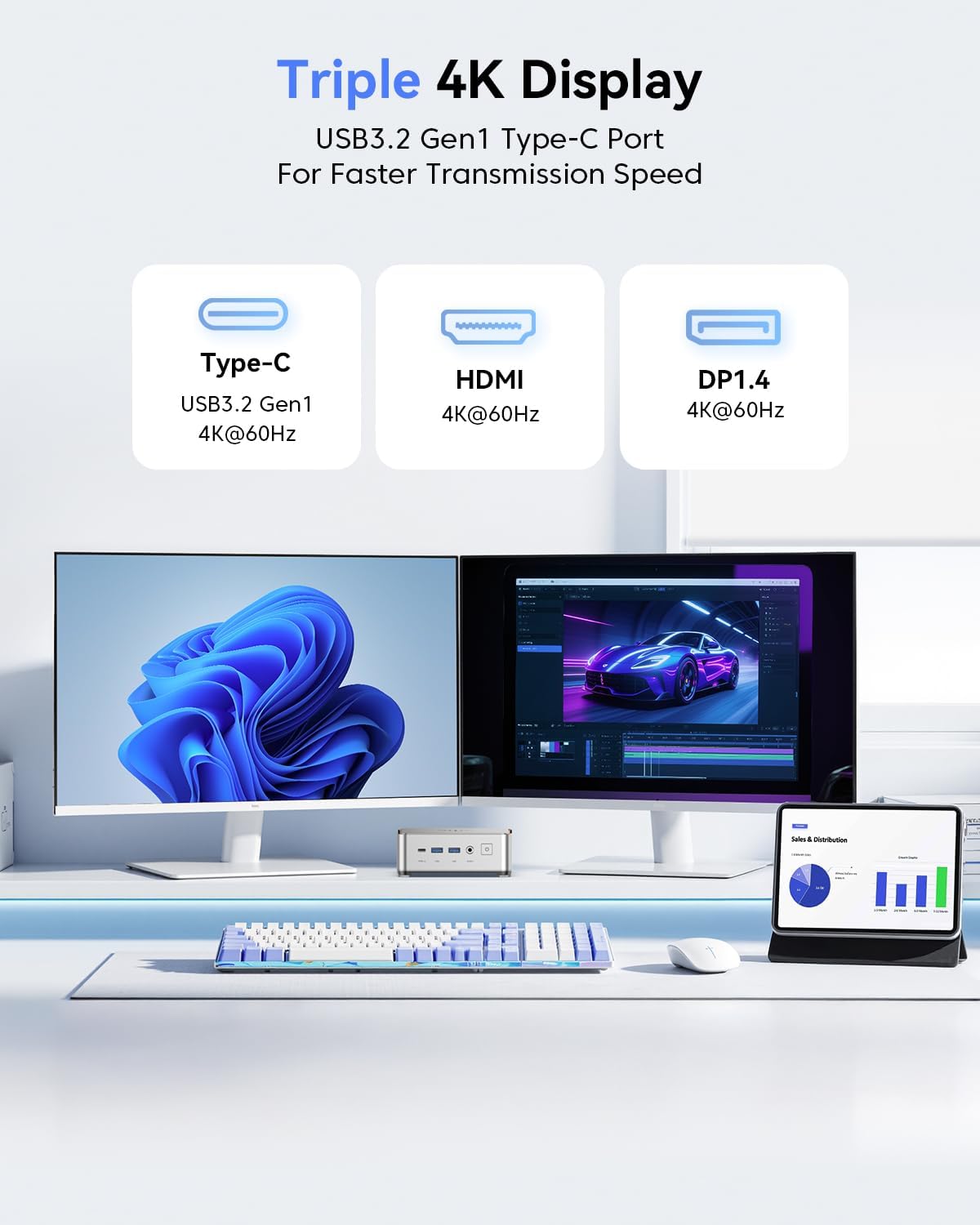

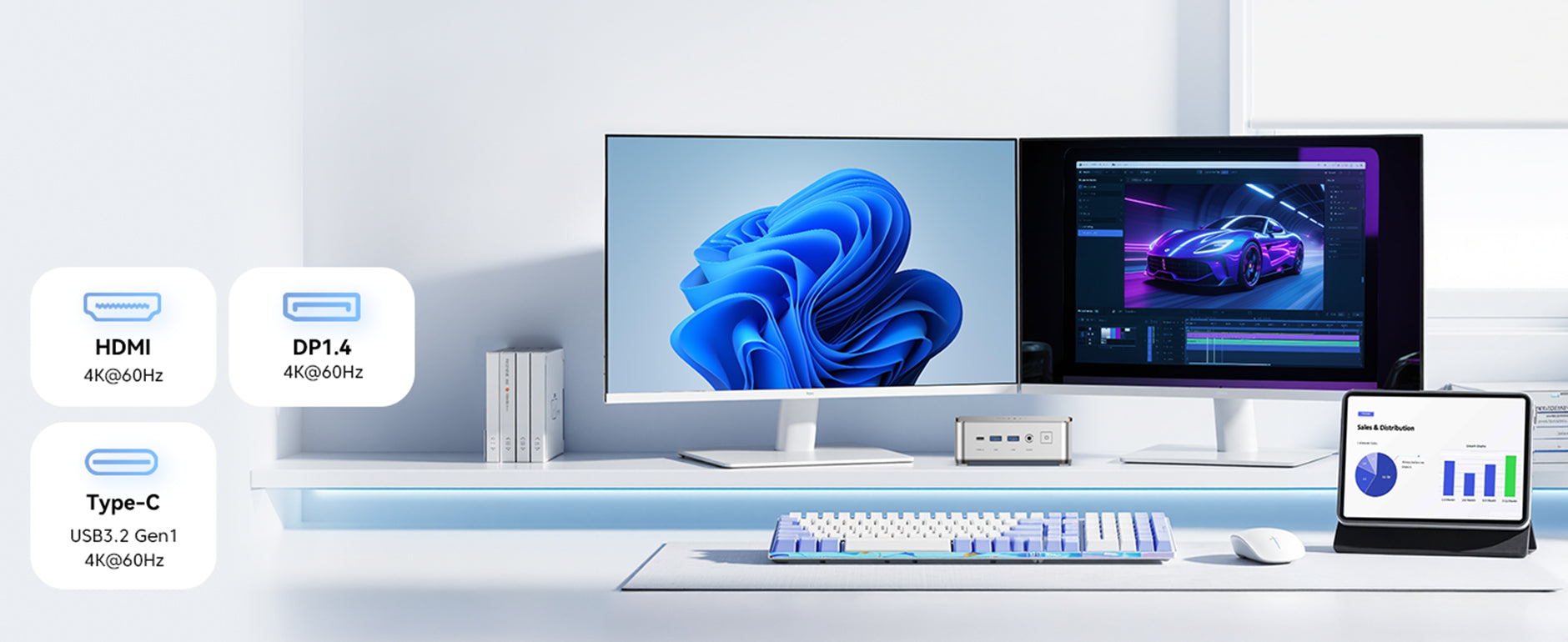

Triple 4K Display

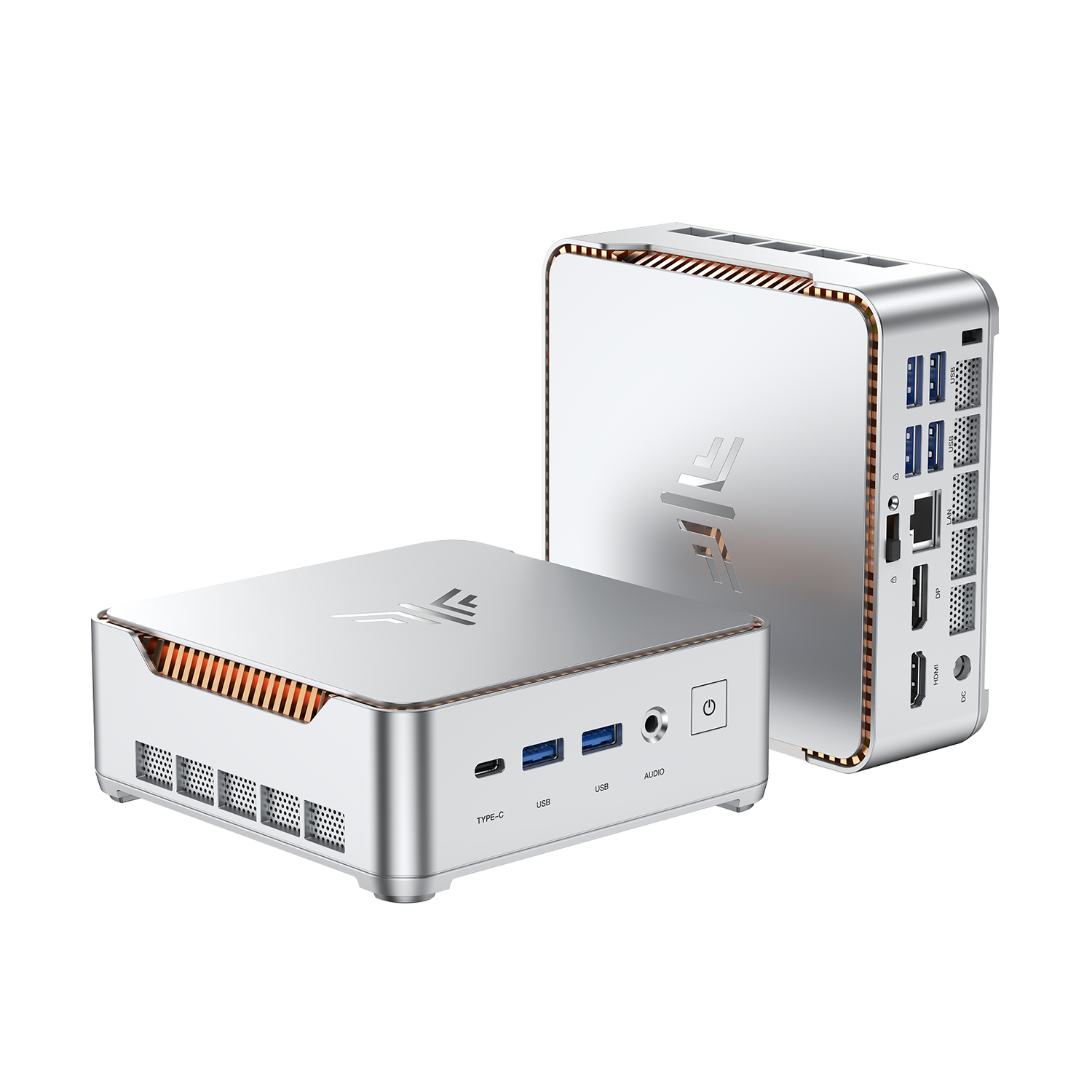

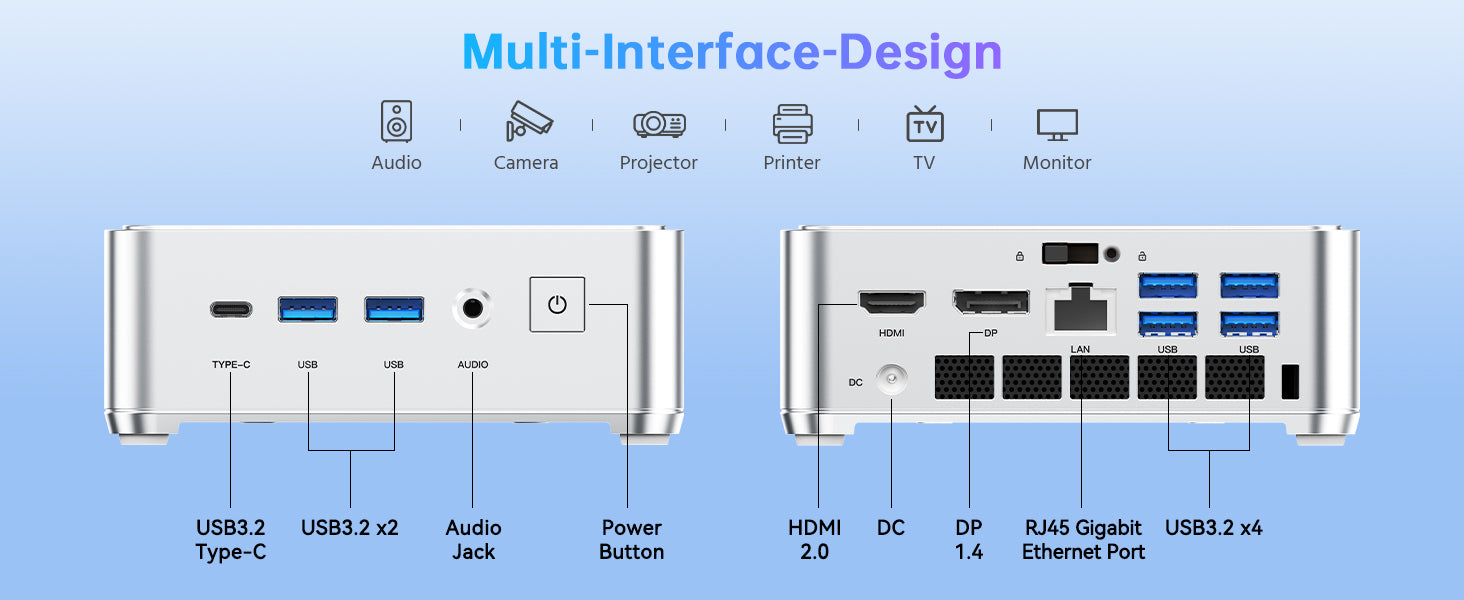

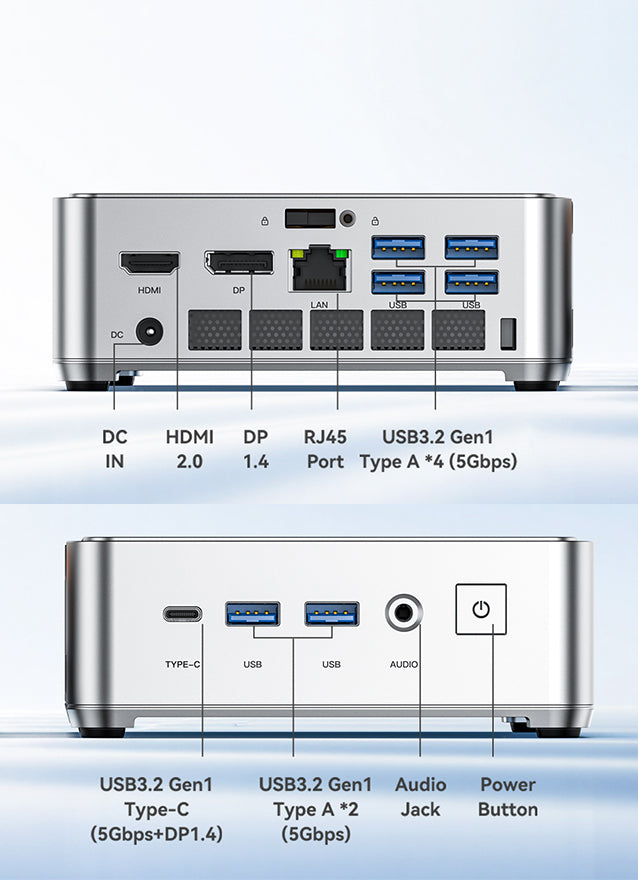

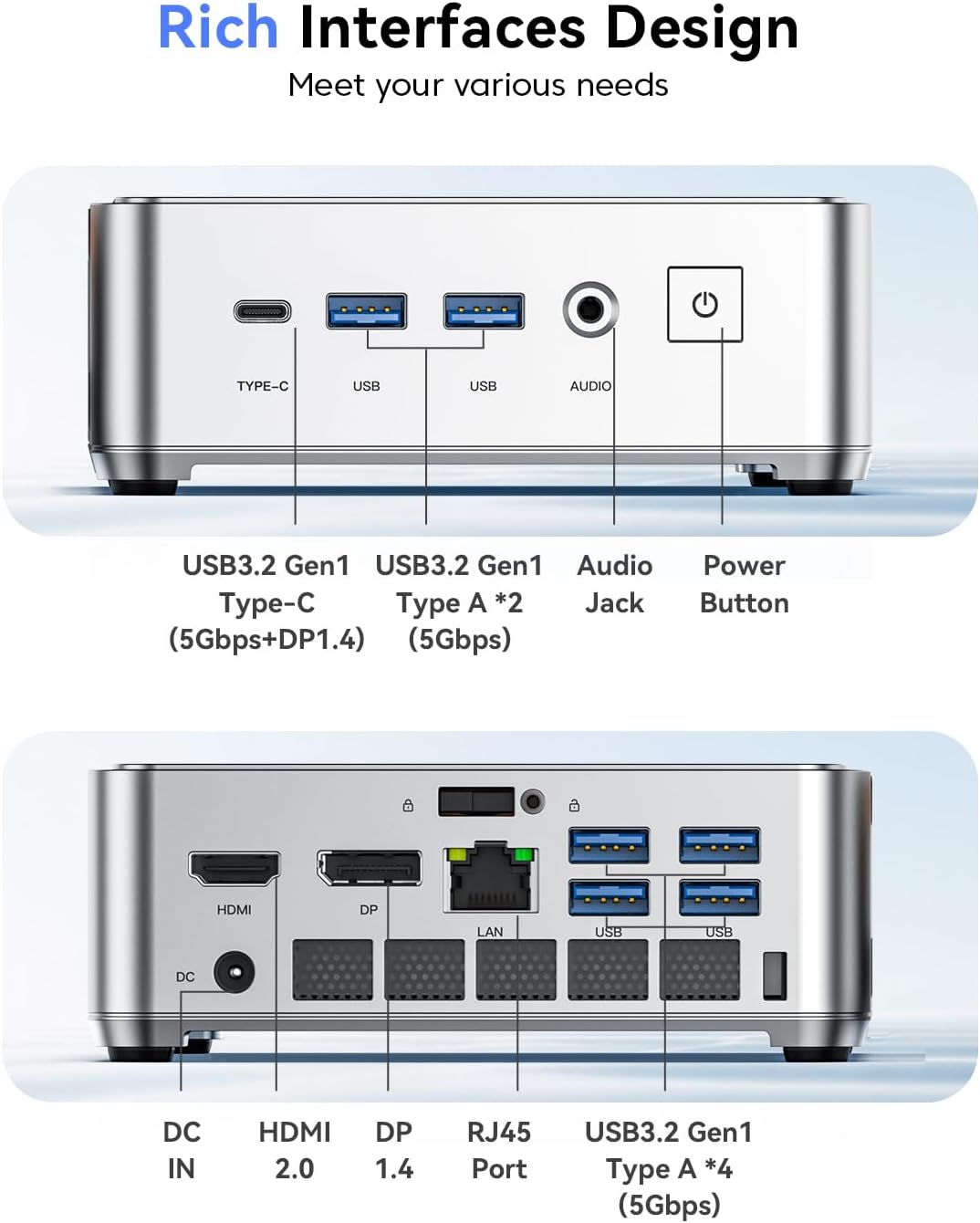

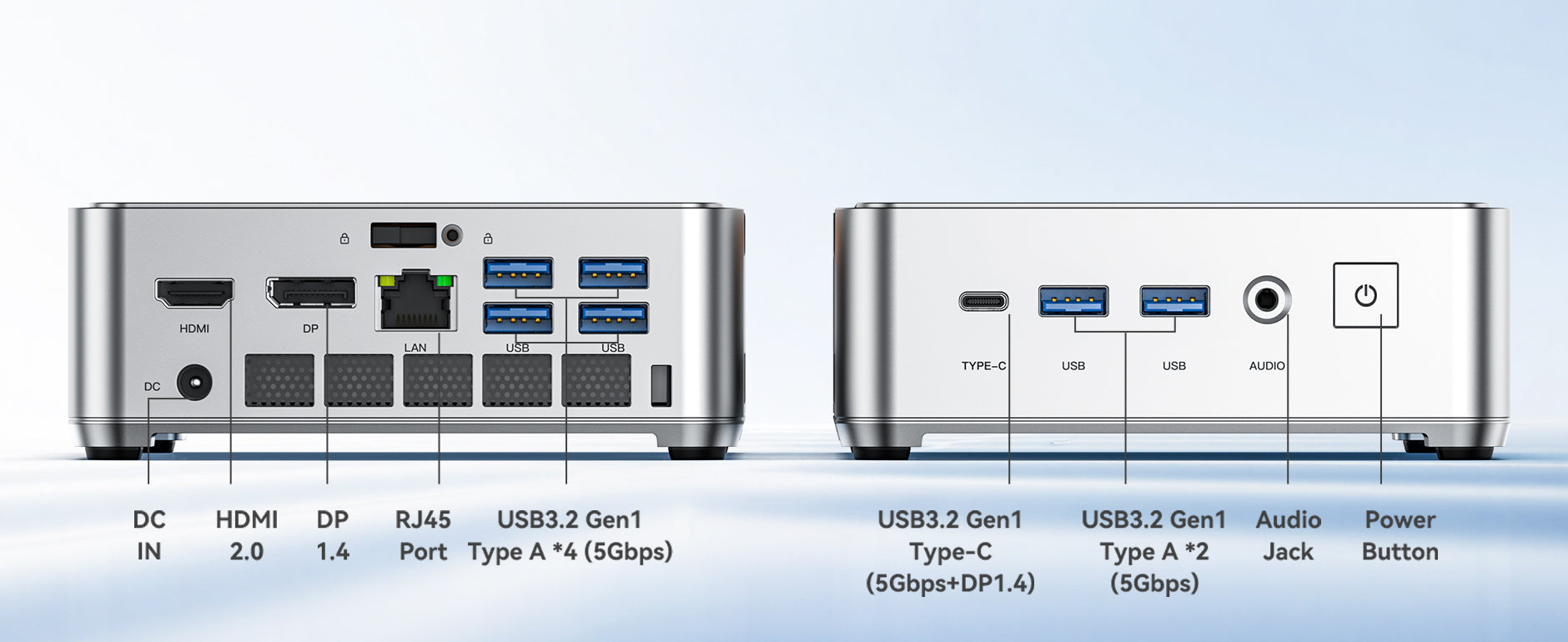

Rich Interfaces Design

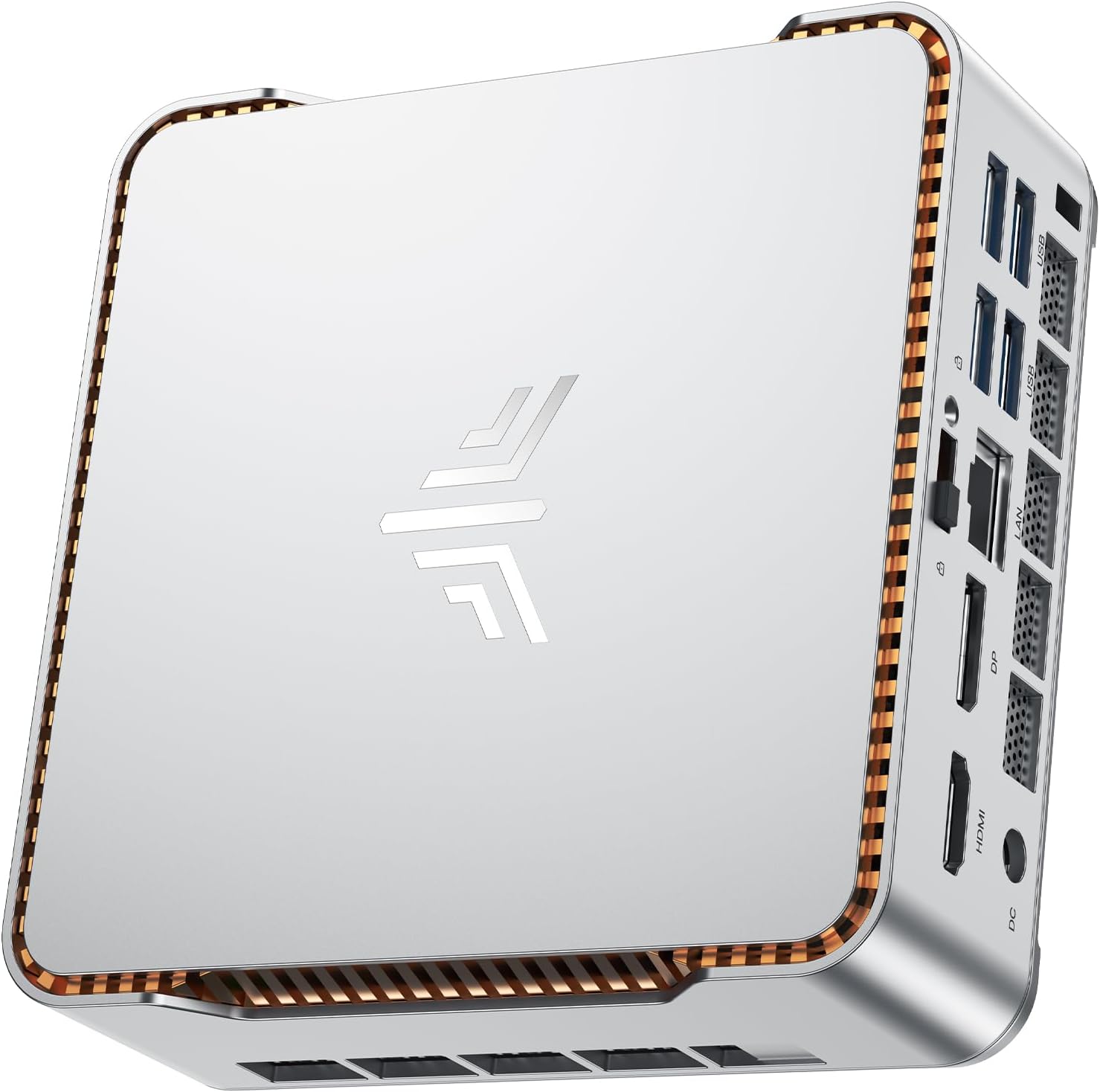

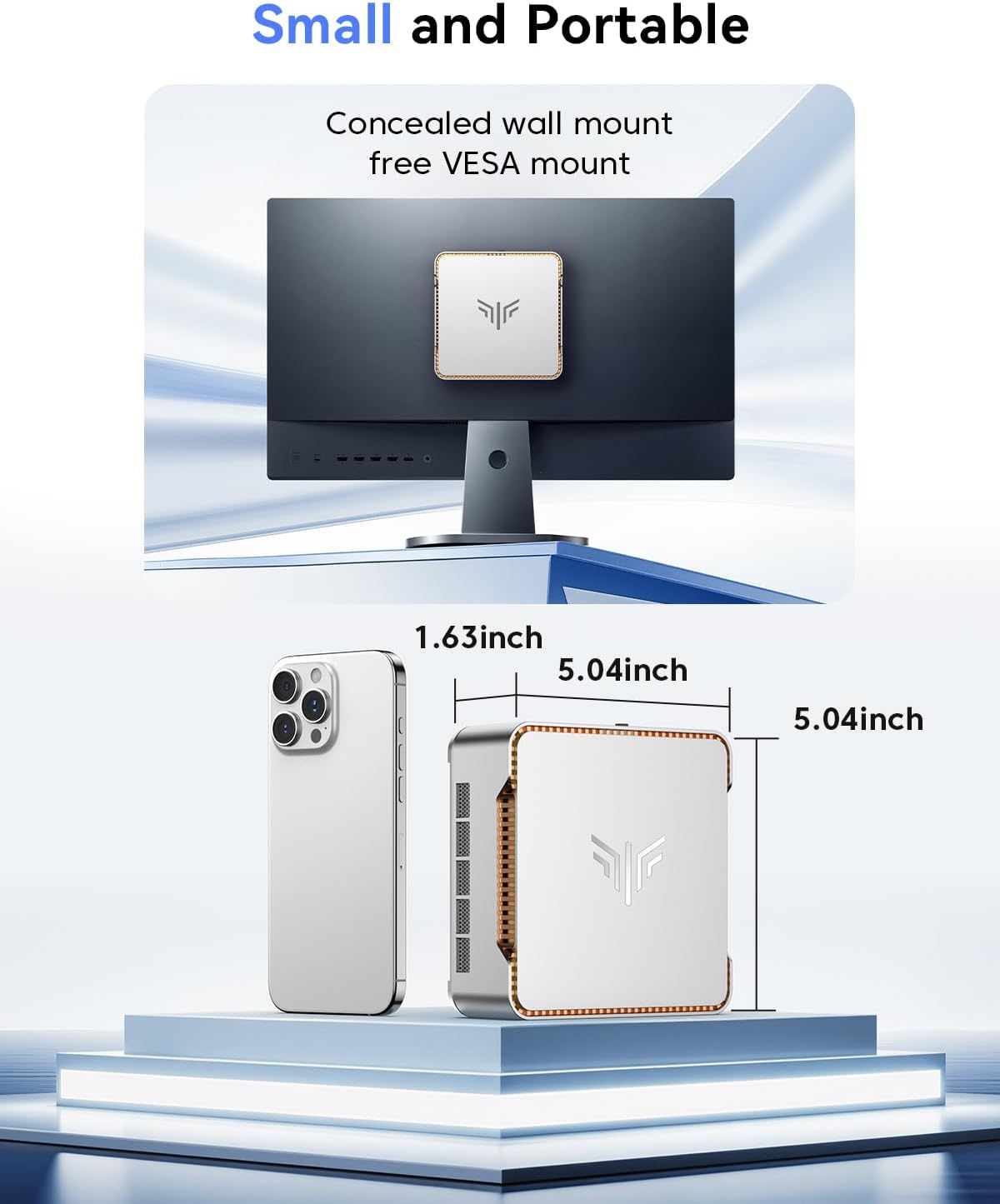

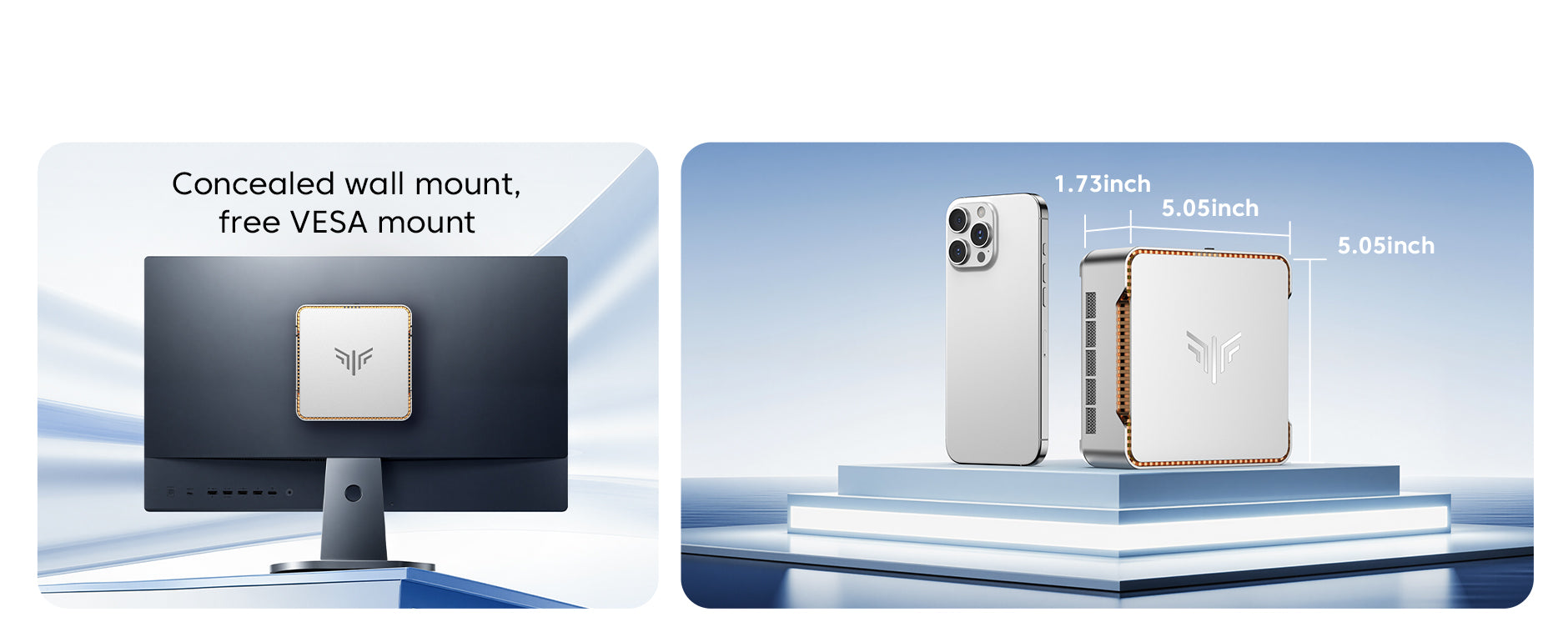

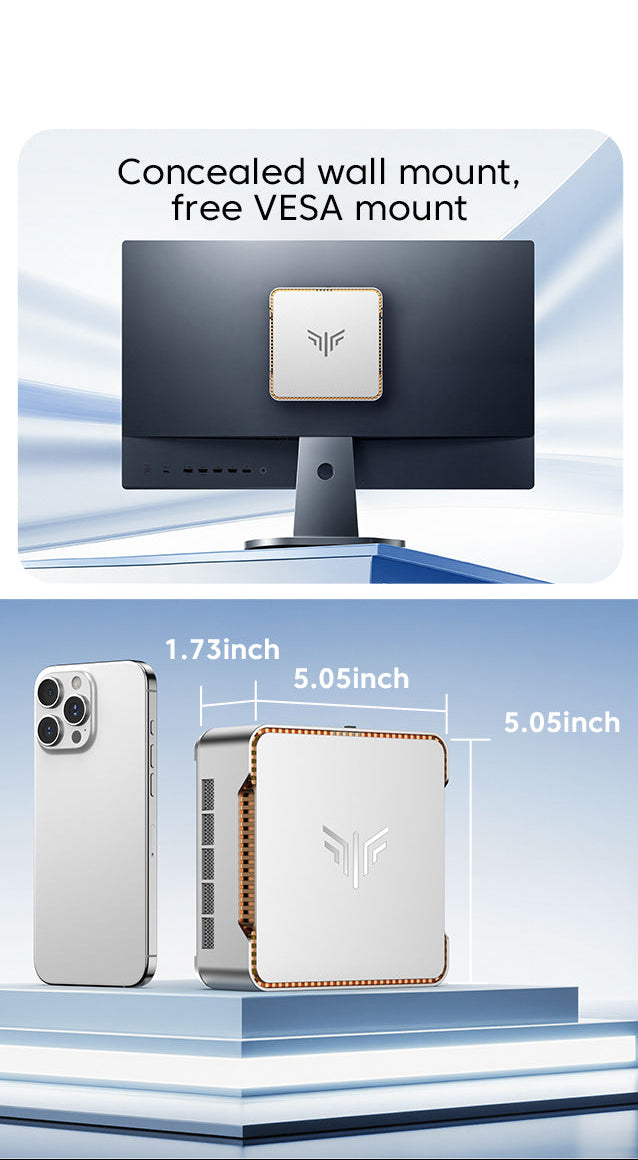

Small and Portable

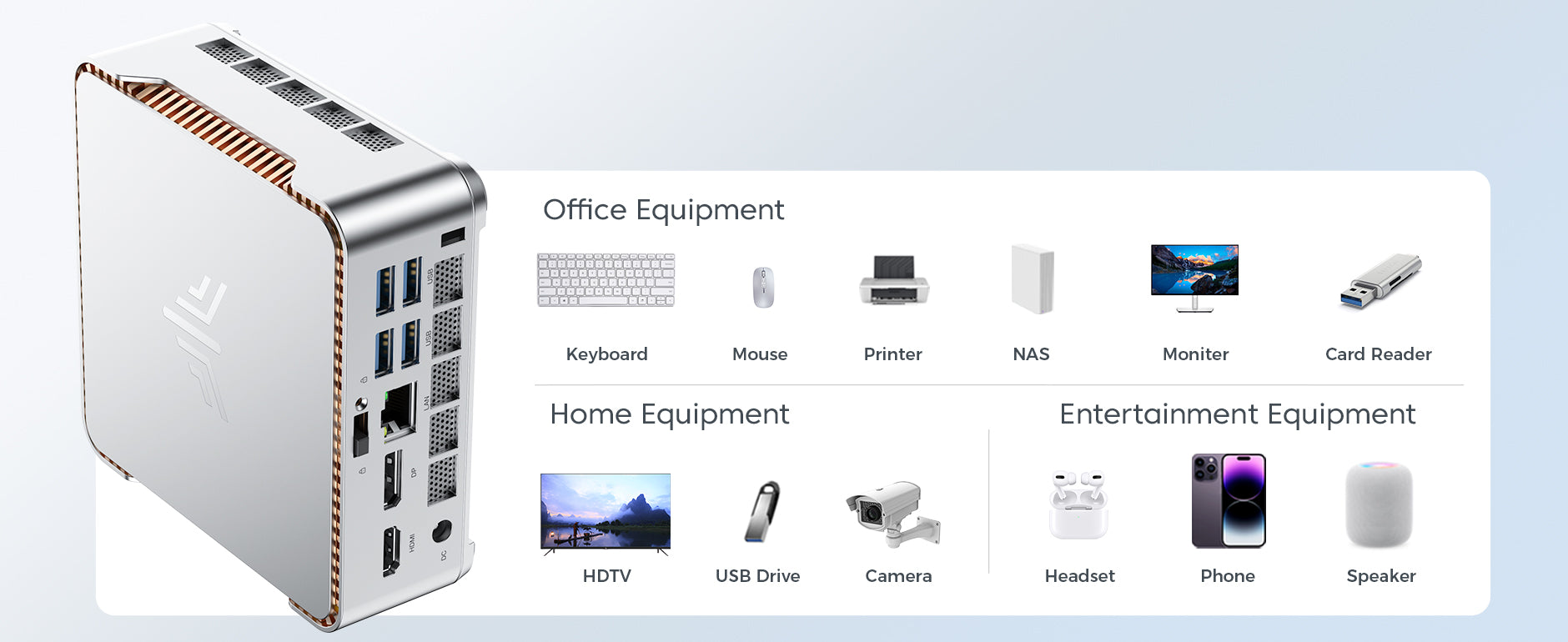

Mutiple Devices Connection
Home Theater, Entertainment Center
Having meetings and conducting business work
